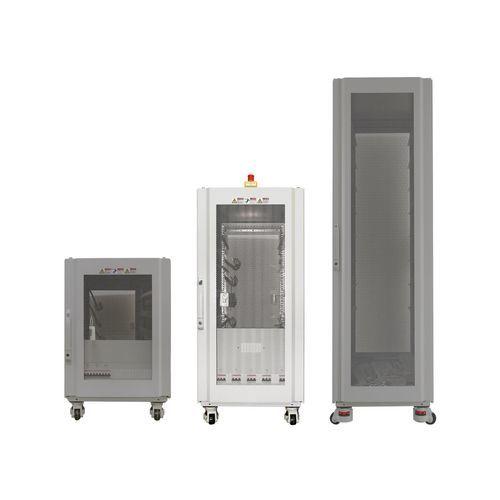

Steel server cabinet RA1127

cabinetfloor-standingrack-mount

The 19" 24U Industrial Cabinet RA1127 is a free‑standing 19" rack enclosure engineered for industrial server, network and control equipment. It features powder‑coated sheet steel construction, configurable mounting brackets and optional electrical components for demanding environments.

Configurations and included equipment

• 3U/4U Mixed version: Per side configurable with 6×3U or 4×4U brackets; includes emergency stop (M32‑PV), 2 Siemens door contacts and grounded copper plate. Net weight: 140 kg; Gross weight: 160 kg.
• 3U Chassis version: 6×3U brackets per side; equipped with 6× ABB S203M‑K32 breakers and 1× 3V/V AC terminal; includes grounded copper plate. Net weight: 145 kg; Gross weight: 160 kg.
• 4U Chassis version: 4×4U brackets per side; equipped with 4× ABB S203‑K32 breakers and 1× 3V/V AC terminal; grounding plate not included. Net weight: 147 kg; Gross weight: 165 kg.
• Delivered with enclosure frame, front/rear doors, side/top/bottom panels, grounding copper bar (4.0 mm), cable tray, mounting bars and standard fasteners.

Core features

• Industrial construction: Powder‑coated sheet steel (RAL 7035) with square pipe‑reinforced doors and 150° hinges for industrial use.
• Secure access: Front and rear doors with lock rods using TS007 fasteners; door angle can be fixed with stoppers.
• Optimized mounting: 482.6 mm (19") usable rack width, 512.5 mm frame spacing; configurable mounting brackets (6×3U or 4×4U per side) for flexible equipment layouts.
• Mobility & stability: Optional height‑adjustable casters (4× GD‑80) with Fuma bearings and open base design for stable free‑standing placement.
• Compliance: Designed to meet CE, UL, VDE, CCC and SAA standards.

Characteristics / Technical specifications

• Denomination: 24U Cabinet
• Article Number: RA1127
• Manufacturer Code: BJ9900098
• Material / Finish: Powder‑coated sheet steel, RAL 7035
• Standard rack width: 482.6 mm (19")
• Frame spacing: 512.5 mm
• Mounting bracket options: 6×3U or 4×4U per side
• External depth options: 1070 mm or 760 mm (variant dependent)
• Optional mobility: Height‑adjustable casters (4× GD‑80) with Fuma bearings
• Grounding: Grounding copper bar included (4.0 mm) for relevant versions
• Fasteners & connectors: TS007 lock rod fasteners (4× M6×12 screws) and TS008 side connectors
• Included accessories: Cable tray, mounting bars, side/top/bottom panels and standard fasteners
• Optional electrical parts: Emergency stop (M32‑PV), Siemens door contacts, ABB breakers, 3V/V AC terminal (custom electrical parts require consultation)
• Compliance / Certifications: CE, UL, VDE, CCC, SAA
• Packaging: Wooden box
