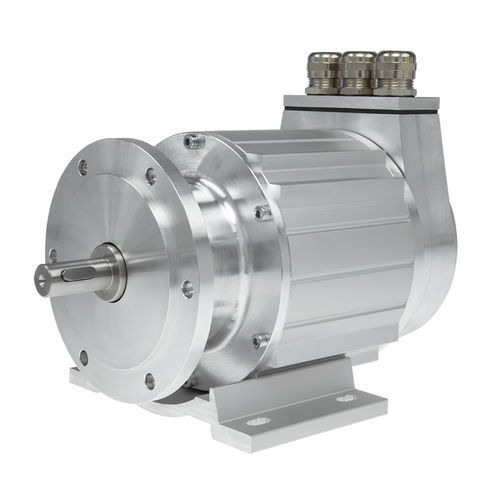

Absolute rotary encoder CDV115 series

Optically or magnetically scanning rotary encoders from TR-Electronic precisely detect positions in steel production, wind turbines, cranes and ships etc. and, when explosion protected, in painting plants. Miniature versions ensure the correct position in medical engineering and SIL3 approved absolute encoders provide for the necessary safety. In addition to high-quality encoders for almost any application, we offer extensive accessories such as programming tools, displays and assembly components for quick and easy commissioning and seamless process integration Safe inside, heavy duty outside Reinforced bearings Resistant housing Stable mounting flange SIL3, PLe Safe bus technology Features Customer-specific solutions Flexible programming Further interfaces available Heavy machine industries Rugged construction Special profile housing Nominal voltage Specific value 24 VDC Limit values, min/max 11/27 VDC Nominal current, typically Specific value 140 mA Condition unloaded Integrated heating Equipment Option Nominal voltage 24 VDC ± 5 % Nominal power 48 W Integrated water cooling Equipment Option Device design Type Single-/Multi-Turn Total resolution <= 31 Bit Number of steps per revolution <= 8192 Number of revolutions <= 256000 Output capacity <= 25 Bit PROFIBUS - Interface PROFIBUS-DP V0 IEC 61158, IEC 61784 PNO Encoder-Profile Class 1 and 2 SSI - Interface Equipment Optional interface SSI-Clock input Optocoupler SSI-Data output RS-422, 2-wire SSI-Clock frequency 80…1000 kHz SSI-Mono time, typically 18 µs Incremental - Interface Equipment Optional interface Incremental signals, square K1± K2± Impulses, square wave 1024 or 2048 Output driver, TTL RS-422, 5 VDC
