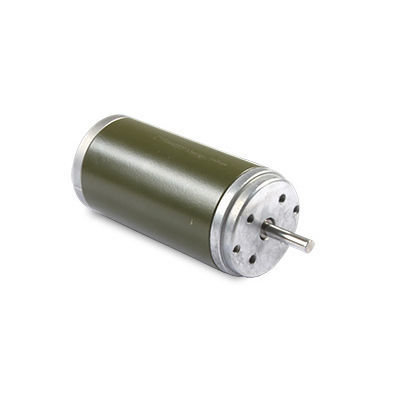

Brushed motor D4387-24DC24 VEMC
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V
- Protection class
- EMC
- Other characteristics
- custom
- Power
15 W
(0.02 hp)- Intensity
1.1 A
- Torque
0.044 Nm
(0.032453 ft.lb)- Rotational speed
3,200 rpm
(20,106.193 rad.min-1)- Diameter
43 mm
(1.69 in)
Description
Brush-commutated DC motor, direct current motor voltage of 24VDC , current 1.1A, rated speed 3200rpm power 15W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
