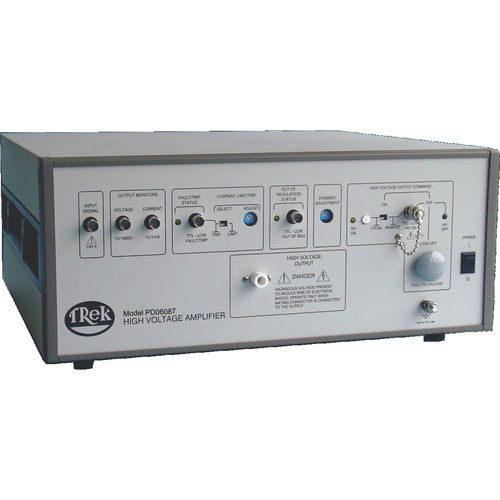

Power amplifier PD06087

high-voltageDClow-noise

The Model PD06087 is a DC-stable, high-voltage power amplifier used in industrial and research applications. It features an all-solid-state design for high slew rate, wide bandwidth and low-noise operation. The four-quadrant, active output stage sinks or sources current into reactive or resistive loads throughout the output voltage range. This type of output is essential to achieve an accurate output response and high slew rate demanded by a variety of loads such as highly capacitive or reactive loads. It is configured as a non-inverting amplifier. Key Specifications Output Voltage: 0 to ±5 kV DC or peak AC Output Current: 0 to ±20 mA or peak AC Slew Rate: Greater than 500 V/µs Large Signal Bandwidth: DC to greater than 15 kHz (1% Distortion) Gain: 1000 V/V Fixed Typical Applications Include Electrophoresis Electrophotography Electrostatic deflection Electro-optic modulation AC or DC biasing Features and Benefits Four-quadrant output for driving capacitive loads Closed loop system for high accuracy Short-circuit protected for equipment protection All solid-state design for maintenance free operation DC-stable for programmable supply applications Low output noise for ultra-accurate outputs NIST-traceable Certificate of Calibration provided with each unit CE compliant
