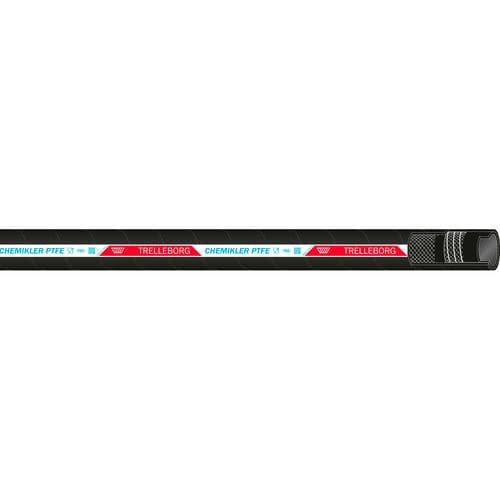

Ultra chemical-resistant flexible piping CHEMIKLER PTFE
for fuelfor oilfor solvents

ultra chemical-resistant flexible piping
ultra chemical-resistant flexible piping
Add to favorites
Compare this product


Characteristics

Use
for fuel, for solvents, for oil
Material
PTFE
Applications
suction, discharge, for the chemical industry, for the pharmaceutical industry, for tanker trucks, for hazardous environments
Other characteristics
ultra chemical-resistant, corrosion-resistant, ATEX, with smooth inner surface, reinforced, abrasion-resistant, weather-resistant
Inner diameter

19 mm, 25 mm, 38 mm, 50 mm (0.748 in)

Outer diameter

31 mm, 37 mm, 51 mm, 66 mm (1.22 in)

Pressure

16 bar (232.06 psi)

Temperature

Min.: -40 °C (-40 °F)

Max.: 150 °C (302 °F)

Delivered length

40 m (131'02")

Description

Applications Suction and discharge of corrosive chemicals: fuels, solvents, oils and corrosive chemicals except chlorine trifluoride, fluorine gas dry, oxygen difluoride, phosgene and molten alkalis metals such as sodium. For road and rail tankers, unloading bays as well as mobile and fixed installations in chemical, pharmaceutical, and allied industries. Specially designed for use in ATEX zones. Advantages Smooth inner tube for maximum flow and easier washing out (with open steam up to +150°C). Hose construction gives excellent mechanical properties. Cover with good resistance to abrasion and chemicals. Inner tube material complies with FDA 21 CFR.177.1550, EU 10/2011 and USP class VI requirements. Can be fitted with many types of couplings. Inner tube chemical resistant PTFE, smooth, black, Reinforcement synthetic textile with embedded steel helix, Cover chemical and weather resistant EPDM, fabric impression, black, Temperature range -40 to +150, Restrictions apply depending on chemical conveyed Electrical properties Conductive tube and cover, R≤10^6Ω/lg. Transversal conductivity <10^9Ω. Standard/Approval EN 12115. Additional information For safe use in ATEX areas, the hose assembly should be properly earth-connected. Couplings Fittings Specially designed fittings are available, please contact us for further information in order to get optimum connections.
