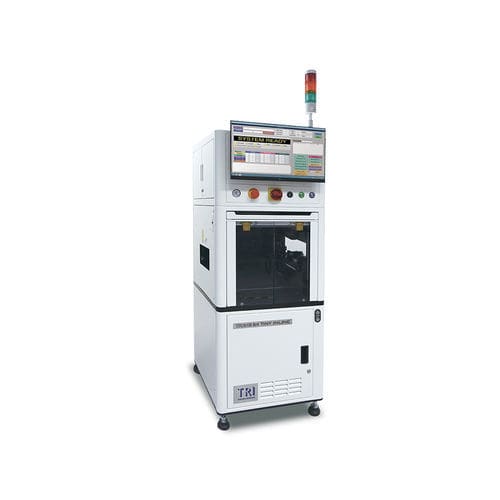

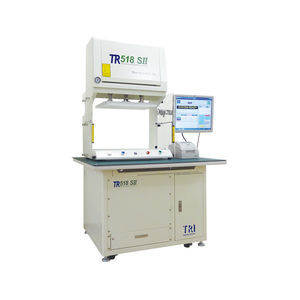

Electric testing machine TR518 SII INLINE

automatedcomputer-controlledprinted circuit

Introduction
TR518 SII INLINE is a flexible automated inline MDA test platform designed for medium-sized PCBs. It supports the TR518 SII family and provides up to 2496 analog test points in a fully electrical, SMEMA-compatible configuration.

Features

• Inline MDA test platform for production integration
• Designed for TRI TR518 SII MDA testers
• SMEMA-compatible with minimal footprint
• Fully electrical design (no compressed air required)
• Up to 2496 analog MDA test points (variant: TINY INLINE with 1024)

Tester Specifications
Analog Test Points: TR518 SII INLINE: 2496 analog test points; TR518 SII TINY INLINE: 1024 analog test points
Operating System: Microsoft® Windows-compatible PC with USB, Windows 10
Fixture Type: Inline / Manual insertion

Analog Testing

• 6-wire measurement switching matrix
• Programmable AC/DC and DC high-voltage/current sources
• Component R/L/C measurement capabilities

Optional Components

• TestJet vectorless open-circuit detection
• Programmable High Voltage DC Source up to 100 V / 100 mA
• Yield Management System: YMS 4.0

Board Handling
Min. PCB size: 50 x 50 mm
Max. PCB size: TR518 SII INLINE: 450 x 300 mm (optional: 500 x 360 mm); TR518 SII TINY INLINE: 330 x 250 mm
PCB thickness: 0.6 – 5 mm


Dimensions
WxDxH: TR518 SII INLINE: 900 x 900 x 1640 mm; TR518 SII TINY INLINE: 600 x 800 x 1640 mm
Note: signal tower height (not included): 392 mm
Weight: TR518 SII INLINE: 470 kg; TR518 SII TINY INLINE: 320 kg

Additional information
SMEMA-compatible fully electrical inline platform designed to minimize footprint while enabling TR518 SII MDA testing in production lines.

Characteristics / Technical specifications

• Model: TR518 SII INLINE (variant: TR518 SII TINY INLINE)
• Manufacturer / Brand: TRI (Test Research, Inc.)
• Analog test points: up to 2496 (INLINE); 1024 (TINY INLINE)
• Operating system: Microsoft® Windows-compatible PC with USB, Windows 10
• Fixture type: Inline / Manual insertion
• Analog test hardware: 6-wire measurement switching matrix; programmable AC/DC and DC high-voltage/current sources; component R/L/C measurement
• Optional analog hardware: TestJet vectorless open-circuit detection; Programmable High Voltage DC Source up to 100 V / 100 mA
• Yield management: YMS 4.0 (optional)
• Min PCB size: 50 x 50 mm
• Max PCB size: 450 x 300 mm (INLINE) / optional 500 x 360 mm; 330 x 250 mm (TINY INLINE)
• PCB thickness: 0.6 – 5 mm
• Dimensions (WxDxH): 900 x 900 x 1640 mm (INLINE); 600 x 800 x 1640 mm (TINY INLINE)
• Weight: 470 kg (INLINE); 320 kg (TINY INLINE)
• Design notes: fully electrical design without compressed air; SMEMA-compatible; minimal footprint for inline integration
