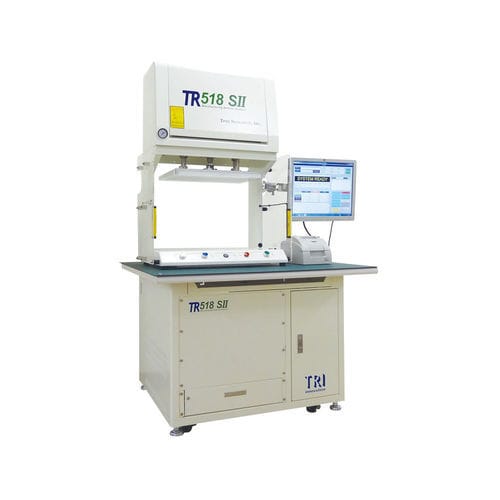

Electric testing machine TR518 SII

computer-controlledPC-controllablefor research and development

Introduction
Built around the successful TR518 series platform, the TR518 SII MDA combines proven analog test performance with a Windows 10 user interface and USB connection to a test PC or notebook. With up to 2560 analog test points, TestJet technology and advanced analog sources, the TR518 SII delivers high-speed, high-accuracy and high-reliability testing for production and R&D environments.

Key features

• Proven TR518 platform with USB interface for PC connection
• TestJet vectorless open-circuit detection
• Windows 10 user interface for intuitive test management

Tester specifications
Analog test points: 2560 analog test points
Operating system: Microsoft® Windows-compatible PC with USB, Windows 10
Fixture type: Offline press

Analog testing capabilities

• Analog test hardware: 6-wire measurement switching matrix
• Programmable AC / DC and high-voltage DC/current sources
• Component measurements: R / L / C

Optional components

• TestJet vectorless open-circuit detection
• Programmable high-voltage DC source up to 100 V / 100 mA
• Yield Management System: YMS 4.0

Dimensions
WxDxH: 1000 x 900 x 1680-1700 mm
Weight: 220 kg

Technical specifications

• Model: TR518 SII
• Analog test points: 2560
• Operating system: Windows 10-compatible PC with USB
• Fixture type: Offline press
• Analog hardware: 6-wire measurement switching matrix
• Programmable sources: AC / DC / DC high voltage & current
• Component measurements: R / L / C
• Optional HV DC Source: up to 100 V / 100 mA
• Optional TestJet: vectorless open circuit detection
• Yield Management: YMS 4.0 (optional)
• Dimensions (WxDxH): 1000 x 900 x 1680-1700 mm
• Weight: 220 kg
