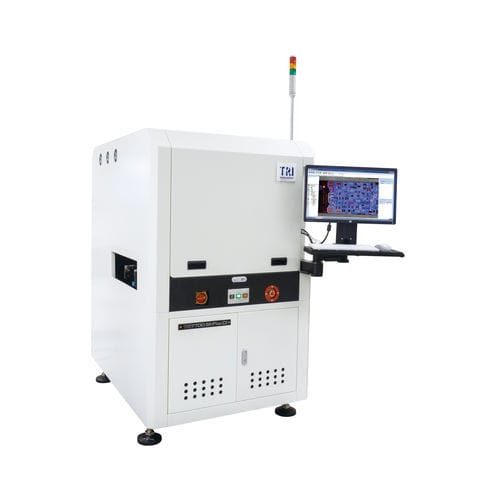

Optical inspection system TR7700 SII Plus CIUVvideo visioncamera
Add to favorites
Compare this product
Characteristics
- Technology
- camera, optical, video vision, UV
- Operational mode
- automated
- Type
- quality control, for defect detection, measurement
- Applications
- for production, for the electronics industry
- Product applications
- for coating
- Configuration
- in-line
- Other characteristics
- high-resolution, computer-controlled, non-contact
Description
Overview
The TR7700 SII Plus CI is an automated conformal coating inspection system for printed circuit boards (PCBs). It combines a high-precision optical design with multi-phase R/W + UV lighting and advanced imaging software to detect UV-active coating defects with minimal false calls. Built for in-line electronics production, it supports SMEMA integration and intuitive coverage programming for fast deployment.
Key features
Optical & Imaging
Imaging Method: Dynamic Imaging
Top Camera: 4 Mpix
Imaging Resolution: 10 µm, 15 µm (factory setting)
Lighting: Multi-phase R/W + UV
Imaging Speed: 60 cm²/sec (@10 µm) / 120 cm²/sec (@15 µm)
Motion & PCB handling
X-Axis Control: Ballscrew + AC-servo controller
Y-Axis Control: Ballscrew + AC-servo controller
X-Y Axis Resolution: 1 µm
Max PCB Size: 500 x 460 mm
PCB Thickness: 0.6–5 mm
Max PCB Weight: 3 kg
Top Clearance: 50 mm; Bottom Clearance: 40 mm (100 mm optional)
Edge Clearance: 3 mm (5 mm optional)
Conveyor: Inline; Height: 880–920 mm; SMEMA Compatible
Inspection functions
Dimensions & Weight
WxDxH: 1000 x 1400 x 1650 mm (not including signal tower; signal tower height 520 mm)
Weight: 600 kg
Technical specifications
The TR7700 SII Plus CI is an automated conformal coating inspection system for printed circuit boards (PCBs). It combines a high-precision optical design with multi-phase R/W + UV lighting and advanced imaging software to detect UV-active coating defects with minimal false calls. Built for in-line electronics production, it supports SMEMA integration and intuitive coverage programming for fast deployment.
Key features
- Accurate UV-active coating inspection
- Intuitive coverage programming and easy training
- Accurate coating area measurement
- Noise reduction with multi-phase lighting
Optical & Imaging
Imaging Method: Dynamic Imaging
Top Camera: 4 Mpix
Imaging Resolution: 10 µm, 15 µm (factory setting)
Lighting: Multi-phase R/W + UV
Imaging Speed: 60 cm²/sec (@10 µm) / 120 cm²/sec (@15 µm)
Motion & PCB handling
X-Axis Control: Ballscrew + AC-servo controller
Y-Axis Control: Ballscrew + AC-servo controller
X-Y Axis Resolution: 1 µm
Max PCB Size: 500 x 460 mm
PCB Thickness: 0.6–5 mm
Max PCB Weight: 3 kg
Top Clearance: 50 mm; Bottom Clearance: 40 mm (100 mm optional)
Edge Clearance: 3 mm (5 mm optional)
Conveyor: Inline; Height: 880–920 mm; SMEMA Compatible
Inspection functions
- Missing Coating
- Insufficient Coating
- Crack
- Bubble / Void
- Splash / Smear / Contamination
- Spill
- Measurement
Dimensions & Weight
WxDxH: 1000 x 1400 x 1650 mm (not including signal tower; signal tower height 520 mm)
Weight: 600 kg
Technical specifications
- Model: TR7700 SII Plus CI
- Imaging Method: Dynamic Imaging
- Top Camera: 4 Mpix
- Imaging Resolution: 10 µm, 15 µm (factory setting)
- Lighting: Multi-phase R/W + UV
- Imaging Speed: 60 cm²/sec (@10 µm) / 120 cm²/sec (@15 µm)
- Motion Control: Ballscrew + AC-servo controller (X/Y)
- X-Y Axis Resolution: 1 µm
- Max PCB Size: 500 x 460 mm
- PCB Thickness: 0.6–5 mm
- Max PCB Weight: 3 kg
- Top Clearance: 50 mm; Bottom Clearance: 40 mm (100 mm optional)
- Edge Clearance: 3 mm (5 mm optional)
- Conveyor: Inline, Height 880–920 mm, SMEMA Compatible
- Dimensions (WxDxH): 1000 x 1400 x 1650 mm
- Weight: 600 kg
Exhibitions
Meet this supplier at the following exhibition(s):
Other TRI Test Research Europe GmbH products

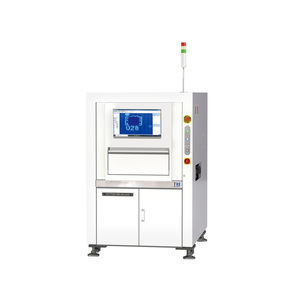

Conformal Coating Inspection (CI AOI)
