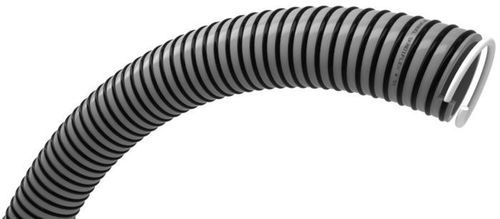

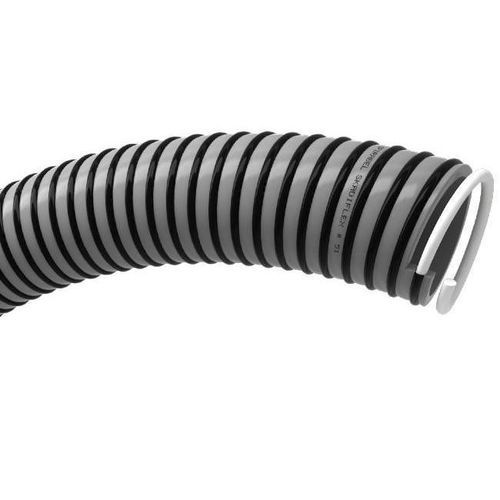

Wastewater hose SPIRABEL SKADIFLEX®

for waterfor sludgePVC

Product overview
Flexible cold-resistant spiral hose designed for industrial suction and discharge applications in demanding conditions. Smooth inner wall for reduced pressure loss.

Construction
Flexible PVC body with an embedded shock‑resistant rigid white PVC spiral and an external reinforced spiral for abrasion resistance.

Applications

• Emptying, draining and sanitation
• Truck equipment and liquid slurry tanker connections
• Suction and light pressure transfer in harsh environments

Sectors of activity

• General industry
• Agriculture
• Road works, civil engineering and wastewater
• Transport and logistics of liquids

Advantages

• Ultra-flexible and lightweight for excellent manoeuvrability in dynamic operations
• Keeps flexibility at very low temperatures (down to -40°C), suitable for low-temperature handling
• High abrasion resistance due to the reinforced external spiral
• Smooth inner wall reduces pressure loss and limits deposition

Fittings

• Compatible with symmetrical couplings (Guillemin, Storz), camlock or universal couplings — fixation with single-wire clamps recommended
• Crimping and band clamps are not recommended because they may not ensure perfect sealing and can crush/break the spiral
• Check before assembly that the fitting has no sharp edges or burrs that could damage the inner tube

Chemical resistance
Refer to the chemical resistance table: column A.

Warning
For oil transfer use SPIRABEL® MDSO. Spiral hoses may elongate under pressure, especially above 40°C; consider this before installation.

Markings
SPIRABEL SKADIFLEX Ø int [N° lot]

Characteristics / technical specifications

• Temperature range: -40°C to +60°C
• Working pressure (indicative): 6 to 15 bar
• Phthalates free
• Construction: flexible PVC with embedded rigid white PVC spiral and reinforced external spiral
• Inner wall: smooth for minimal pressure loss
• Application: suction and light pressure transfer; truck and sanitation equipment
• Fittings recommended: Guillemin, Storz, camlock, universal (use single-wire clamps)
