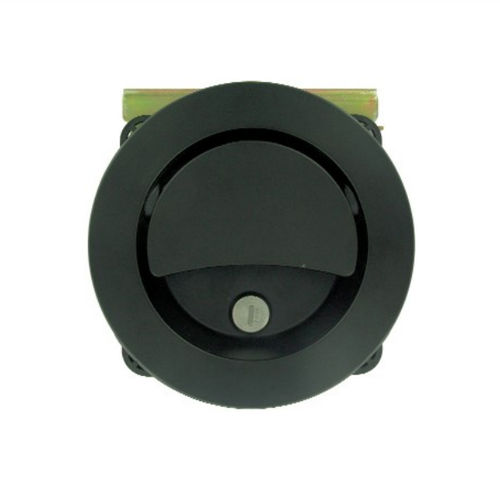

Folding handle 030-1300

recesseddooremergency

This compartment paddle handle is designed for utility and service bodies, emergency vehicles and baggage doors for recreational vehicles. It features a multipoint bellcrank and is available in black or buffed copper-nickel-chrome finishes. Designed For Compartment doors on recreational vehicles Most storage, compartment and access doors Emergency vehicle compartment doors Available In locking or non-locking configurations With single rotor latch module (050-0206) that can be orientated at 90° intervals with the paddle depending on application With gasket for flange of housing to provide resistance to water and dirt infiltration Multiple pivot plate for doors that require a remote latching mechanism Material Housing and paddle: Die cast zinc alloy Internal latch components: Case hardened, smooth edge stamped steel Springs: Stainless steel, non-corrosive Other components: Zinc plate mild steel Finish Housing and paddle: Black powder coated or buffed copper-nickel-chrome plated Stampings: Zinc plate clear chromate conversion coat Installation Easy drop-in installation Integrated rotary: Mounts with (2) 1/4-20 UNC threaded cutting screws (not included) Two-point: Mounts with (4) #10-24 UNC screws (not included) Retrofits with most folding D-ring handles presently used Caution: Product does not meet the locking requirements for FMVSS 206 (ECE R11).
