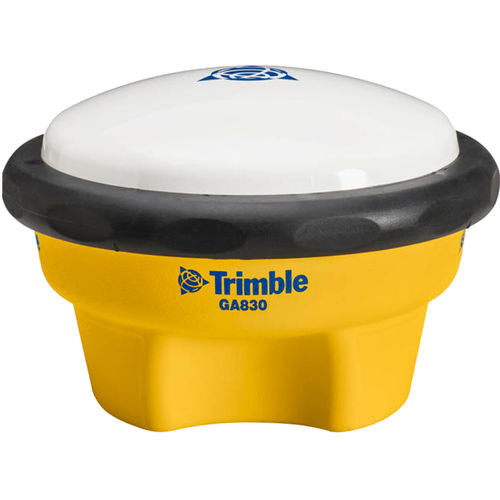

RF antenna GA830

GNSSsatelliteparabolic

The Trimble GA830 GNSS Antenna is a general purpose GNSS antenna designed for the marine environment. It can be used for both position and heading applications, and has excellent RTK and Mobile Satellite Services (MSS) performance. The GA830 is optimized for tracking low elevation satellites and delivering improved signal to noise ratios. With a ruggedized housing and reliable performance, the GA830 is intended for installation on construction barges, pile driving rigs, marine vessels, cranes and other dynamic marine platforms. High rejection RF filtering reduces the effects of Iridium transmissions, which can often be the cause of GNSS signal loss on marine construction vessels. Key features of the GA830: Economical GNSS antenna for precision RTK marine applications Ruggedized housing for marine conditions Additional high rejection filtering 1614 – 1624 MHz to reduce interference from Iridium transmissions Capable of using free differential corrections from MSK Beacons and SBAS Recommended for best MSS reception (includes Fugro Marinestar®, OmniSTAR and CenterPoint RTX) Comprehensive GNSS support Robust low-elevation satellite tracking
