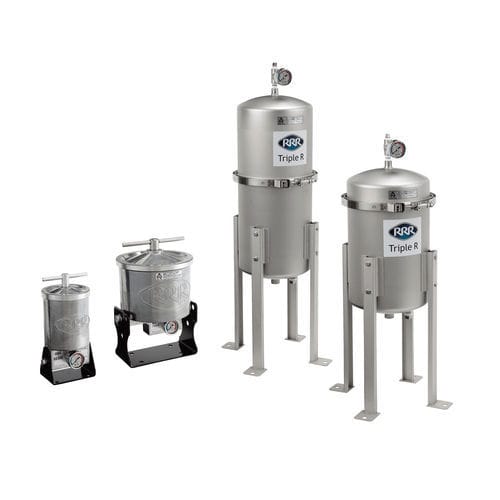

Hydraulic filter BU series

oilcartridgepressure

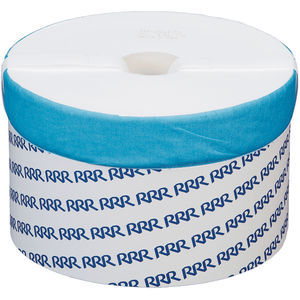

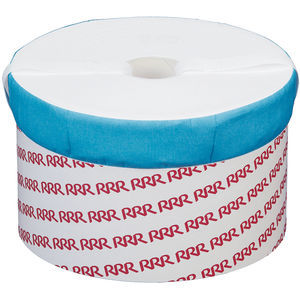

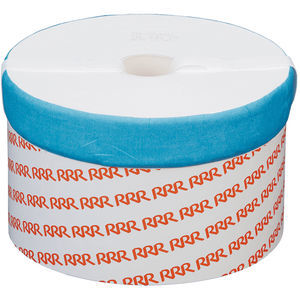

Very compact and light bypass oil cleaners. Connects directly to the high pressure line. No motor and pump necessary. Designed for hydraulic systems up to 450 bar system pressure. All BU bypass filters are fitted with M-series 2μ absolute filter elements (beta ratio ß2 >400 and ß3 = 1000 ). With built in pressure and flow control valve, safety valve, and a pressure gauge for checking element change. Also available for water glycol fluids; with coated housing and WG element. Bypass Filters: Typical applications All sorts of hydraulic systems with continuous pressure and fitted with servo-valves or proportional valves, or other high-tech hydraulic equipment. Typical application: Plastic Injection moulding machines Mobile hydraulic equipment, like excavators, cranes, container lifts, logging harvesters, piling machines, drilling machinery, etc. Die-casting machines, metal working machines, like bending-, cutting-, punching machines.
