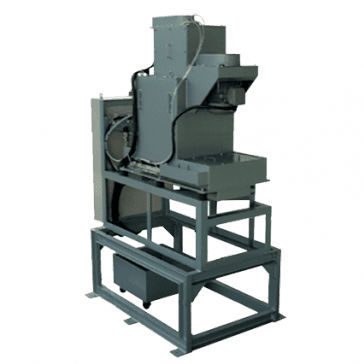

Centrifugal separator TRS series

oilwaterprocess water

High capacity solid particle and sludge removal, for: Water based fluids, emulsions and process water. Oil based fluids up to max 20 cSt. viscosity at operating temperature. The centrifuges provide highly efficient and reliable liquid/solids separation capability and virtually dry solids discharge without the use of consumable filtration elements. Available with manual operation, or full automatic with touch screen control panel and build-in dirt scraper. The open conic bowl concept allows easy cleaning and removal of the separated dirt. Low maintenance cost. Flow rates from 15 lit/min up to 200 lit/min. No consumables, one-time investment. Typical applications Coolants for metal, glass or ceramic machining or forming Surface treatment baths and parts washers, like washing steel plates in metal stamping Paint shop water Metalworking, metals pretreatment, wire drawing Benefits Separates micron sized particles, such as aluminum/steel dust, carbon, lens and glass dust, stone dust and mud Dehydrates and solidifies sludge Improves machine reliability and product quality Increases production speed and productivity Extends useful life of coolants and oil; reduces coolant and oil consumption and prevents deterioration of the fluid. Additives will not be separated
