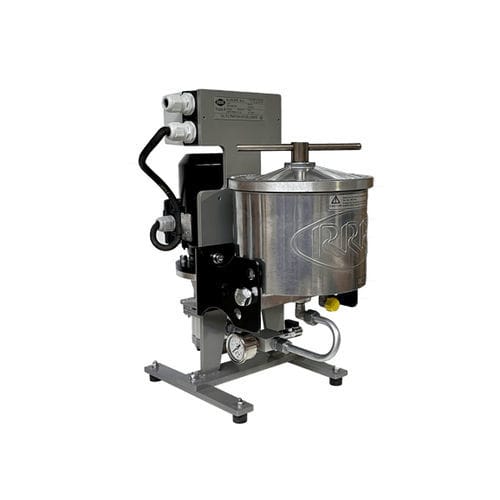

Oil filter SE series

cartridgepressurefor purifying

Compact off-line bypass oil cleaners, in all sizes and with different flow rate. Check the datasheet to select a model for purifying your oil tank. Built around a very compact power pack, they can easily be connected to any oil reservoir. The standard versions are fully equipped with an switch box with thermo-protection, a sampling port (very convenient to take oil samples on a regular basis). All units have a mounting bracket for quick installation and a pressure gauge to check the element contamination level. A suction strainer or a spin-on suction filter can be added, and are useful to give an extra protection to the suction pump. All SE off-line oil cleaners are fitted with M-series 3μ absolute filter elements (beta ratio ß3 = 1000). Low running cost, easy installation & maintenance. Also available for water glycol fluids with coated housing and WG element. Typical applications Plastic Injection moulding machines Die-casting machines, metal working machines, like bending-, cutting-, punching machines. Mobile hydraulic equipment All hydraulic systems fitted with proportional or servo-valves, and other high-tech hydraulic equipment., requiring optimum oil cleanliness. SE-specials: flexible Setup A SE100E and most of the bigger models, can be ordered for horizontal installation (BH-version) or for vertical, wall-mount installation (WH-version).
