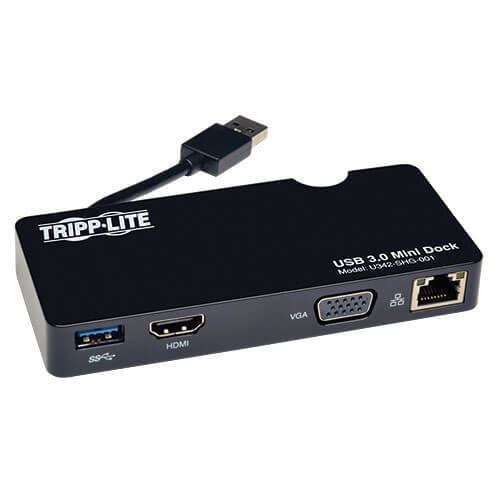

Tablet PC docking station U342-SHG-001

universal

Overview The Tripp Lite U342-SHG-001 mini docking station adds HDMI, VGA, Gigabit Ethernet and a USB-A port to a laptop or computer via a single USB-A connection. Supports USB 3.2 Gen 1 (USB 3.0) at up to 5 Gbps. Provides one external video output at a time (HDMI or VGA) and a RJ45 Gigabit Ethernet port (10/100/1000 Mbps).

Features

• Add an HDMI or VGA monitor, a USB 3.2 Gen 1 port and Gigabit Ethernet to a laptop
• Portable, compact design with built-in cable for easy travel and storage
• Bus powered — no external power adapter required
• USB 3.2 Gen 1 (5 Gbps); backward compatible with USB 2.0/1.1
• HDMI supports up to 2048 x 1152 @ 60 Hz; VGA supports up to 1920 x 1200 @ 60 Hz
• Automatically resumes from hibernation and suspend modes
• Gigabit Ethernet (RJ45) supports true 10/100/1000 Mbps
• Extra USB-A port available for a USB peripheral

System Requirements

• Windows XP and later (including Windows 7, 8, 8.1, 10); Intel Mac OS X/Mac (compatibility notes apply)
• USB port (USB 3.0 required for full USB 3.2 Gen 1 speeds)
• DVI, HDMI or VGA monitor (HDMI-to-DVI adapter required for DVI)
• Supports Surface tablets running non-RT Windows 8/8.1

Package Includes

• U342-SHG-001 mini dock
• Driver CD
• Owner's Manual

Additional Notes

• Only one external video output (HDMI or VGA) can be used at a time
• HDMI-to-DVI adapter (sold separately) required to connect a DVI monitor via HDMI
• Compact form factor suitable for travel and mobile users

Technical Specifications

• Product type: Docking Station (mini dock)
• Model: U342-SHG-001 — Brand: Tripp Lite
• Host connector: USB-A (male); Data port: USB-A (female) — USB 3.2 Gen 1 (5 Gbps)
• Video ports: HDMI (female, HDMI 1.3, HDCP 1.3) and VGA (HD15)
• Max video resolution: HDMI up to 2048 x 1152 @ 60 Hz; VGA up to 1920 x 1200 @ 60 Hz
• Network: RJ45 Gigabit Ethernet (10/100/1000 Mbps), Auto MDIX, full duplex, IEEE 802.3az support
• Power: Bus powered; Power to connected USB device: 5V / 0.9A (4.5W); Power consumption: 4.5 W
• Physical: Length 5.00 in; Unit weight 0.19 kg; Shipping weight 0.18 kg; Color: Black; Material: Polycarbonate, ABS
• Operating temp: 10° to 40°C; Storage temp: -20° to 70°C; Relative humidity: 0–90% non-condensing
• Driver required; Warranty: 3-year limited warranty
