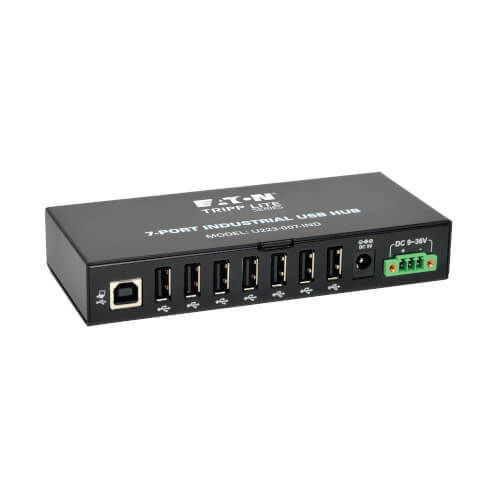

USB hub U223-007-IND

Overview
This industrial-grade USB 2.0 hub (model U223-007-IND) expands a single USB host connection into seven downstream USB ports for connecting scanners, printers, sensors and other peripherals in commercial and industrial environments. Built with a heavy-duty steel housing and designed for harsh conditions, it provides ±15 kV ESD immunity for increased protection.

Key features

• Adds up to 7 USB devices (printers, barcode scanners, serial devices, sensors) to a host computer
• Supports USB 2.0 high-speed transfers up to 480 Mbps (backward compatible with USB 1.1)
• Rugged metal housing suitable for warehouses and factory floors
• ESD protection to ±15 kV to reduce risk of static damage to peripherals
• Plug-and-play operation — no driver required
• DIN-rail and wall mounting options for flexible installation

System requirements

• Compatible with all USB-enabled operating systems
• If using optional power supply: requires 5 V DC, 3 A with a 5.5 x 2.1 x 9.5 mm barrel plug (positive pin, negative sleeve)

Package Includes

• U223-007-IND 7-Port industrial USB hub
• USB 2.0 cable, 6 ft
• 3-pin power terminal block
• DIN rail-mounting hardware
• Wall-mounting hardware
• Owner's manual

Technical specifications

• UPC: 037332181428
• Product type: Hub
• Technology: USB 2.0 (High Speed, up to 480 Mbps)
• Host connector: USB A (male)
• Data ports: (7) USB A (female) — USB 2.0
• Number of ports: 7 (data) / total ports: 8 (including host)
• Connector plating: Nickel
• Power source type: 3-pin terminal block (also accepts optional 5 V DC supply or bus power)
• Power consumption: 2.50 W
• Power provided to connected devices: 5 V, 0.5 A (2.5 W) per USB port
• DC barrel plug spec (optional supply): 5.5 x 2.1 x 9.5 mm, positive pin, negative sleeve
• ESD protection: ±15 kV immunity
• Operating temperature: 0° to 60° C (32° to 140° F)
• Storage temperature: -10° to 80° C (14° to 176° F)
• Relative humidity: 5% to 95% RH, non-condensing
• BTU: 8.5 BTU/hr
• Material: Steel (black finish)
• Unit dimensions (HxWxD): 14.2 x 6.36 x 2.46 cm
• Unit weight: 0.45 kg
• Shipping dimensions (HxWxD): 7.11 x 23.11 x 16.00 cm
• Shipping weight: 0.54 kg
• Warranty: 2-year limited warranty
• Compliance: RoHS; CE; REACH; FCC (USA)
