Fiber laser cutting machine TruLaser 30 Bevel Cut series

2D laserfor aluminumfor stainless steel

Overview

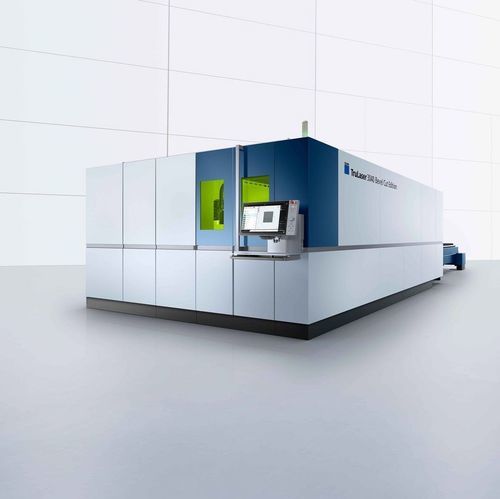

The TruLaser Series 3000 Bevel Cut Edition is a 2D laser cutting system with integrated bevel cutting capability. The cutting unit tilts to produce chamfers, countersinks and angled edges up to 50°, enabling in‑machine chamfering on thin and thick sheets (application-dependent). The bevel function is economical from low shares of bevel parts (approx. 5%) and can reduce subsequent processing and assembly costs.

Key benefits

• Bevel capability up to ±50° for chamfers, countersinks and rounded edges.
• Reduced downstream operations: fewer secondary processes and lower assembly costs.
• Material flexibility: bevel cutting for structural steel and stainless steel; vertical cutting for other materials.
• Full 2D functions in vertical mode: Highspeed Eco, CoolLine, EdgeLine Bevel, BrightLine fiber, etc.

Applications and examples

• Precise chamfers and countersinks on thin and thick structural parts.
• Filigree contours and bevels in thick structural steel.
• Efficient bevel cutting for stainless steel (e.g., nitrogen cutting) while maintaining vertical cutting capability for other materials.

Equipment & process functions

• EdgeLine Bevel: program and cut chamfers, countersinks and rounded edges directly on the machine.
• CoolLine: water-mist cooling at the cutting head for reliable thick mild steel processing and tighter nesting.
• Nanojoints: secure fixation with minimal rework and simple part removal.
• Collision protection & Smart Collision Prevention: protect cutting head and reduce microjoint usage.
• Smart Rerun: automatic continuation after minor collisions or cutting flaws to avoid downtime.
• AdjustLine: adapt cutting process to varying material quality.
• DetectLine and Sorting Guide: camera-based sheet positioning and handling assistance.
• Drop&Cut: efficient use of remainder sheets with live camera positioning.
• Dot Matrix Code: laser 2D marking for part identification and process integration.
• MobileControl App and Touchpoint HMI: remote operation and intuitive touch interface.
• Digital connectivity (OPC UA, Oseon): software integration and Industry 4.0 connectivity.
• BrightLine fiber, PierceLine, Integrated gas mixer, FlexLine, Highspeed / Highspeed Eco: advanced cutting, piercing and gas-efficiency functions.

Technical data (overview)
Model | TruLaser 3040 Bevel Cut | TruLaser 3060 Bevel Cut | TruLaser 3080 Bevel Cut
Maximum speed - Simultaneous | 170 m/min | 170 m/min | 170 m/min
X axis (working range) | 4002 mm | 6067 mm | 8037 mm
X axis (for 50° bevel cut) | 3355 mm | 5420 mm | 7470 mm
Y axis | 2099 mm | 2576 mm | 2576 mm
Y axis (for 50° bevel cut) | 1600 mm | 2077 mm | 2077 mm
Laser-specific data (TruFiber 12001) - Maximum laser power | 12000 W | 12000 W | 12000 W
Maximum sheet thickness, mild steel | 30 mm | 30 mm | 30 mm
Maximum mild steel thickness with cutting package for thick sheets | 35 mm | 35 mm | 35 mm
Maximum sheet thickness - mild steel (for 50° bevel cut) | 15 mm | 15 mm | 15 mm
Maximum sheet thickness, stainless steel | 40 mm | 40 mm | 40 mm
Maximum stainless steel thickness with cutting package for thick sheets | 50 mm | 50 mm | 50 mm
Maximum sheet thickness - stainless steel (for 50° bevel cut) | 10 mm | 10 mm | 10 mm
Maximum sheet thickness, aluminum | 30 mm | 30 mm | 30 mm
Maximum sheet thickness, copper | 12.7 mm | 12.7 mm | 12.7 mm
Maximum sheet thickness, brass | 12.7 mm | 12.7 mm | 12.7 mm
Consumption - Average power input in production (TruFiber 12001) | 16 kW | 16 kW | 16 kW

Additional information
The bevel function becomes economical from low shares of bevel parts (approx. 5%). Applying chamfers directly on the machine reduces downstream process steps and can decrease processing time and costs for complete assemblies.

Characteristics / technical specifications

• Product name: TruLaser Series 3000 Bevel Cut Edition.
• Bevel angle capability: up to 50°.
• Economical threshold for bevel use: from ~5% bevel-cut parts.
• Bevel-capable sheet thickness (typical): chamfers on thin and thick sheets up to 25 mm (application-dependent).
• Laser source option: TruFiber 12001 (up to 12 kW).
• Max mild steel thickness (vertical cut): 30 mm (35 mm with thick-sheet package).
• Max mild steel thickness for 50° bevel cut: 15 mm.
• Max stainless steel thickness (vertical cut): 40 mm (50 mm with thick-sheet package).
• Max stainless steel thickness for 50° bevel cut: 10 mm.
• Max aluminum thickness: 30 mm.
• Max copper/brass thickness: 12.7 mm.
• Simultaneous maximum axis speed: 170 m/min.
• Average production power consumption (TruFiber 12001): ~16 kW.
• Available models / working ranges: TruLaser 3040 / 3060 / 3080.
