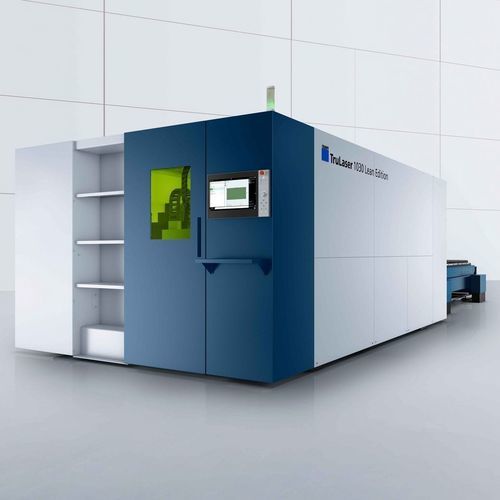

Fiber laser cutting machine TruLaser 10 Lean Edition series2D laserfor aluminumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, 2D laser
- Material
- for aluminum, for stainless steel, for copper, for brass
- Product handled
- for metal sheets, sheet
- Control type
- CNC
- Applications
- for industrial applications, for metal fabrication
- Configuration
- large-format, 2D
- Other characteristics
- high-power, programmable
- X travel
3,000 mm, 6,000 mm
(118.11 in, 236.22 in)- Y travel
1,500 mm, 2,500 mm
(59.06 in, 98.43 in)- Maximum cutting height
10 mm, 25 mm
(0.4 in, 1 in)- Cutting speed
140 m/min
- Laser power
6,000 W
- Load capacity
930 kg, 2,900 kg
(2,050.3 lb, 6,393.41 lb)
Description
Overview
The TruLaser Series 1000 Lean Edition is a cost‑efficient 2D laser cutting system designed for reliable sheet processing with TruFiber 6001 fiber lasers. With 6 kW laser power and optional thick-sheet cutting package, it cuts up to 25 mm depending on material and configuration. The machine is built for straightforward operation with integrated cutting data to accelerate setup and production.
Key features
Fiber Care
TruFiber lasers include active power control and reserves to ensure stable cutting quality over long operating times. TRUMPF provides service parts under terms of a service agreement for new 2D machines to support lifetime performance.
Software
Technical data
Specification | TruLaser 1030 Lean Edition | TruLaser 1040 Lean Edition | TruLaser 1060 Lean Edition
Simultaneous speed | 140 m/min | 140 m/min | 140 m/min
X axis | 3000 mm | 4000 mm | 6000 mm
Y axis | 1500 mm | 2000 mm | 2500 mm
Maximum workpiece weight | 930 kg | 2000 kg | 2900 kg
Maximum laser power (TruFiber 6001) | 6000 W | 6000 W | 6000 W
Maximum sheet thickness, mild steel | 20 mm | 20 mm | 20 mm
Maximum mild steel thickness with cutting package for thick sheets | 25 mm | 25 mm | 25 mm
Maximum sheet thickness, stainless steel | 20 mm | 20 mm | 20 mm
Maximum stainless steel thickness with cutting package for thick sheets | 25 mm | 25 mm | 25 mm
Maximum sheet thickness, aluminum | 15 mm | 15 mm | 15 mm
Maximum aluminum thickness with cutting package for thick sheets | 20 mm | 20 mm | 20 mm
Maximum sheet thickness, copper | 10 mm | 10 mm | 10 mm
Maximum sheet thickness, brass | 10 mm | 10 mm | 10 mm
Average power input in production (TruFiber 6001) | 15 kW | 15 kW | 15 kW
The TruLaser Series 1000 Lean Edition is a cost‑efficient 2D laser cutting system designed for reliable sheet processing with TruFiber 6001 fiber lasers. With 6 kW laser power and optional thick-sheet cutting package, it cuts up to 25 mm depending on material and configuration. The machine is built for straightforward operation with integrated cutting data to accelerate setup and production.
Key features
- Integrated cutting data: Preconfigured material and thickness parameters for fast commissioning.
- TruFiber 6001 powertrain: Up to 6000 W laser output for fusion and flame cutting modes.
- Flexible work areas: Multiple X×Y variants to match production needs (3000×1500 mm to 6000×2500 mm).
- Service and support: Remote service, technical support and operator training available.
Fiber Care
TruFiber lasers include active power control and reserves to ensure stable cutting quality over long operating times. TRUMPF provides service parts under terms of a service agreement for new 2D machines to support lifetime performance.
Software
- TruTops Boost: programming, nesting and automated workflows to reduce material use and programming time.
- Smart View: machine monitoring and dashboards for performance insights and production tracking.
- Integration: Compatible with TruTops production planning and order control tools.
Technical data
Specification | TruLaser 1030 Lean Edition | TruLaser 1040 Lean Edition | TruLaser 1060 Lean Edition
Simultaneous speed | 140 m/min | 140 m/min | 140 m/min
X axis | 3000 mm | 4000 mm | 6000 mm
Y axis | 1500 mm | 2000 mm | 2500 mm
Maximum workpiece weight | 930 kg | 2000 kg | 2900 kg
Maximum laser power (TruFiber 6001) | 6000 W | 6000 W | 6000 W
Maximum sheet thickness, mild steel | 20 mm | 20 mm | 20 mm
Maximum mild steel thickness with cutting package for thick sheets | 25 mm | 25 mm | 25 mm
Maximum sheet thickness, stainless steel | 20 mm | 20 mm | 20 mm
Maximum stainless steel thickness with cutting package for thick sheets | 25 mm | 25 mm | 25 mm
Maximum sheet thickness, aluminum | 15 mm | 15 mm | 15 mm
Maximum aluminum thickness with cutting package for thick sheets | 20 mm | 20 mm | 20 mm
Maximum sheet thickness, copper | 10 mm | 10 mm | 10 mm
Maximum sheet thickness, brass | 10 mm | 10 mm | 10 mm
Average power input in production (TruFiber 6001) | 15 kW | 15 kW | 15 kW
