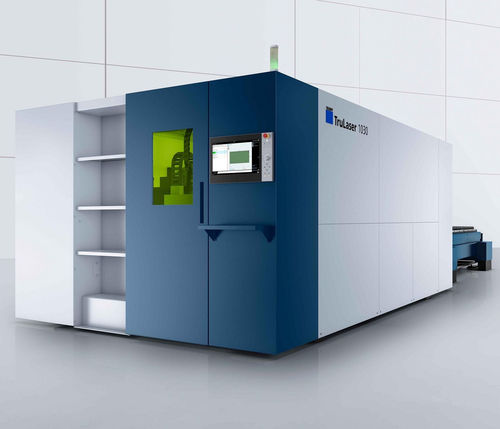

2D laser cutting machine TruLaser 1000 seriesfor stainless steelfor steelsheet metal
Add to favorites
Compare this product
Characteristics
- Technology
- 2D laser
- Material
- for stainless steel, for steel
- Product handled
- sheet metal
- Control type
- CNC
- Applications
- for industrial applications
- Configuration
- XY
- Other characteristics
- high-efficiency
- X travel
3,000 mm, 4,000 mm, 6,000 mm
(118.11 in, 157.48 in, 236.22 in)- Y travel
1,500 mm, 2,000 mm, 2,500 mm
(59.06 in, 78.74 in, 98.43 in)- Cutting speed
140,000 mm/min
(91.864 in/s)- Laser power
3,000 W, 4,000 W, 6,000 W
- Overall length
9,333 mm, 11,150 mm
(367 in, 439 in)- Maximum width
5,990 mm, 6,650 mm, 7,150 mm
(236 in, 262 in, 281 in)- Height
2,200 mm
(87 in)- Weight
9,400 kg, 12,000 kg, 16,500 kg
(20,723.45 lb, 26,455.47 lb, 36,376.27 lb)
Description
Excellent value for money, “Made in Switzerland”
Lean, powerful laser cutting
When it comes to laser cutting, value for money is key. The robust machines in the TruLaser 1000 Lean Edition series get the job done cost-effectively. Thanks to their comparatively low purchase price, they pay for themselves even at low utilization. With 6 kW of power, they cut materials up to 25 mm thick while delivering outstanding quality. Ready to get started: the machines are intuitive to operate, and the cutting data are already integrated.
Optimized for maximum efficiency and intuitive operation—robust, high-quality, and safe!
When it comes to laser cutting, value for money matters. The robust machines in the TruLaser 1000 Lean Edition series work cost-effectively. Their comparatively low purchase price means they pay for themselves even at low utilization. With 6 kW of power, they cut workpieces up to 25 mm thick and deliver outstanding quality. Ready to get started: the machines are intuitive to operate, and the cutting data are already integrated.
Lean, powerful laser cutting
When it comes to laser cutting, value for money is key. The robust machines in the TruLaser 1000 Lean Edition series get the job done cost-effectively. Thanks to their comparatively low purchase price, they pay for themselves even at low utilization. With 6 kW of power, they cut materials up to 25 mm thick while delivering outstanding quality. Ready to get started: the machines are intuitive to operate, and the cutting data are already integrated.
Optimized for maximum efficiency and intuitive operation—robust, high-quality, and safe!
When it comes to laser cutting, value for money matters. The robust machines in the TruLaser 1000 Lean Edition series work cost-effectively. Their comparatively low purchase price means they pay for themselves even at low utilization. With 6 kW of power, they cut workpieces up to 25 mm thick and deliver outstanding quality. Ready to get started: the machines are intuitive to operate, and the cutting data are already integrated.
