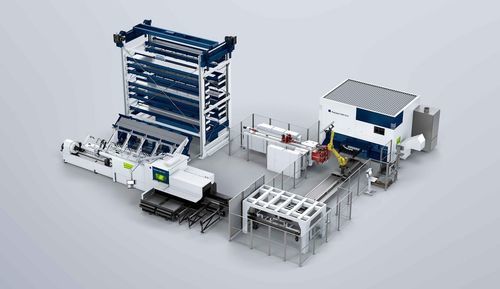

Vertical automatic storage system STOPA series

cassettefor tubesASRS

Product overview
Reduce operator involvement during tube processing. The tube store with a storage connection enables fast, automated changeover of raw material and automated feeding of laser tube-cutting machines. The system removes a defined number of tubes from storage cartridges and supports integration into automated production lines.

Key benefits

• Reducing operator involvement – Automated tube supply reduces the workload of qualified personnel.
• Automated loading – The machine can be automatically loaded from a STOPA tube storage system.
• Exact removal – The automation removes a defined number of tubes from the storage cartridges.
• Simplifying the material flow – Enables fully automatic, unattended loading of TruLaser Tube machines.

Equipment / Features

• Swivel-mounted conveyor system – Flexible conveyor path allowing semi-automatic loading for special profiles and intermediate orders without prior storage.
• Tilt-and-lift station – Extracts the cartridge with raw material from the STOPA store and transfers it to the conveyor unit.
• Tilting/extraction and incoming goods station – Configurable at front or long side, tower position freely selectable (configuration dependent).
• Material stock & storage management program – Oseon Grow or Oseon Flow, depending on the product version.

Technical data (table)
Profile length: 2450 mm - 6400 mm; 2700 mm - 8050 mm
Max. load capacity per storage location: 3000 kg; 4000 kg (version dependent)
Max. loading height of cassettes: 300 / 375 / 450 mm
Inner cassette width: 840 mm
Number of cassettes: < 24; < 600; < 1000 (depending on storage type)
Incoming goods station: Front and long side, tower freely selectable; longitudinal variants available (configuration dependent)
Tilt and lift station: Front and long side, tower freely selectable; longitudinal variants available (configuration dependent)
Machine connection: TruLaser Tube 3000 / 5000 / 7000
Weighing unit in the cassette lift: Yes/No depending on version
Swivel-mounted conveyor system: Yes
Material stock management and storage management program: Oseon Grow or Oseon Flow

Characteristics / technical specifications

• Profile length: 2450 mm - 6400 mm (standard) / 2700 mm - 8050 mm (extended)
• Max. load capacity per storage location: 3000 kg (standard) / 4000 kg (heavy-duty versions)
• Max. loading height of cassettes: 300 mm, 375 mm, 450 mm
• Inner cassette width: 840 mm
• Number of cassettes: configurable <24 up to <1000 depending on storage type
• Incoming goods station and tilt-and-lift station: configurable front/longitudinal positions
• Machine connection: Compatible with TruLaser Tube 3000, 5000, 7000
• Optional weighing unit in cassette lift (version dependent)
• Swivel-mounted conveyor system for flexible loading
• Material and storage management: Oseon Grow / Oseon Flow
