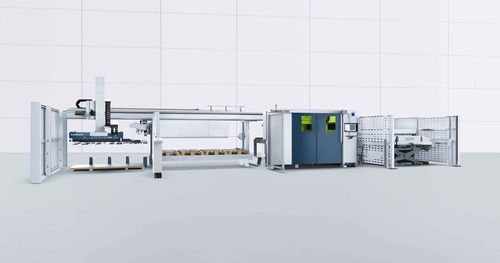

Automated punching machine TruMatic 5000

electricservo-drivensheet metal

Overview
The TruMatic 5000 is a punch‑laser combination system for fully automated, multi‑shift sheet metal production. It integrates punching, laser cutting and forming with a 6 kW TruFiber solid‑state laser and DeltaDrive to process a wide range of materials. The system can be paired with the new SheetMaster for autonomous loading, pre‑separation, sorting, palletising and unloading.

Key benefits

• High productivity: 6 kW TruFiber enables fast laser cutting in combined punch‑laser cycles.
• Automated workflow: SheetMaster and ToolMaster support continuous, multi‑shift operation.
• Scratch‑free punching/forming: descending die reduces surface damage during processing.
• Reduced secondary operations: combined processing often eliminates downstream deburring and handling.
• Wide material capability: reliable processing of steel, stainless steel, aluminium, copper and brass.
• Energy efficiency: solid‑state laser technology and DeltaDrive improve overall energy use.

Functionality and components
The TruMatic 5000 uses a single cutting head with advanced beam guidance for all materials and thicknesses, minimising non‑productive head changes. Punching, lasering and forming tools work in synergy to deliver ready parts. The new SheetMaster (new generation) handles raw sheet loading, pre‑separation during production, unloading of finished parts, sorting and palletising via a flexible gripping unit with individually controlled suction cups. The ToolMaster enables parallel tool handling and automatic tool changes without stopping production.

Technical data (selected)

• Configuration with new SheetMaster Medium — W 17132 mm × D 10760 mm × H 3700 mm
• Configuration with new SheetMaster Large — W 18880 mm × D 11260 mm × H 3700 mm
• Punching (E = 1 mm): Medium 800 1/min — Large 690 1/min
• Marking: 1000 1/min
• Punching mode X / Y: Medium 2500 mm / 1250 mm — Large 3000 mm / 1550 mm
• Laser operation X / Y: Medium 2500 mm / 1250 mm — Large 3000 mm / 1550 mm
• TruFiber maximum power: 6000 W
• Maximum sheet thickness (general): up to 6.4 mm (certain configurations)
• Maximum sheet size (SheetMaster Medium): 2500 × 1250 mm — (SheetMaster Large): 3067 × 1532 mm
• Maximum sheet weight (SheetMaster): Medium 240 kg — Large up to 300 kg

Options & equipment highlights

• Descending die for scratch‑free punching and forming.
• Brush tables for sensitive materials.
• Vision equipment (Smart View) for live monitoring.
• Smart Load and Unload with sensors for reliable handling and inspection.
• Separation station for pre‑separation parallel to production.
• Smart punch monitoring to detect broken or missing punches before tool change.
• Integrated flattening to correct sheet deformations during processing.
• Universal cutting unit matched to the solid‑state laser for improved collision resistance.
• MobileControl app for remote operation and monitoring.

Applications
The TruMatic 5000 is suitable for serial production of parts from mild steel, stainless steel, aluminium, copper and brass. Its TruFiber laser tolerates back‑reflections, enabling reliable cutting of highly reflective materials and supporting extended forming operations close to or on formed edges.

Specifications

• Model: TruMatic 5000
• Laser source: TruFiber 6001 (solid‑state)
• Maximum laser power: 6000 W
• Maximum sheet thickness (steel/stainless): up to 8 mm (depending on configuration)
• Maximum sheet thickness (aluminium/copper/brass): up to 6 mm (depending on configuration)
• Maximum punching force: 180 kN
• Punching rate (E = 1 mm): Medium 800 1/min, Large 690 1/min
• Marking speed: 1000 1/min
• Working range X (punching/laser): Medium 2500 mm / Large 3000 mm
• Working range Y (punching/laser): Medium 1250 mm / Large 1550 mm
• Combined operation X axis: 2535 mm
• Maximum sheet size (SheetMaster Medium): 2500 × 1250 mm; (SheetMaster Large): 3067 × 1532 mm
• Minimum sheet size (SheetMaster): 800 × 800 mm
• Sheet thickness range (SheetMaster): 0.5 mm – up to 8 mm depending on format
• Maximum sheet weight (SheetMaster): Medium 240 kg / Large up to 300 kg
• Maximum workpiece weight on table: Medium 150 kg / Large 230 kg
• Number of tools/clamps: 21 / 3
• MultiTool changing time: 0.5 s
• Maximum part removal sizes: punching chute 180 × 180 mm; laser flap 400 × 600 mm
• Max. stack height (unloading platform): 340 mm
