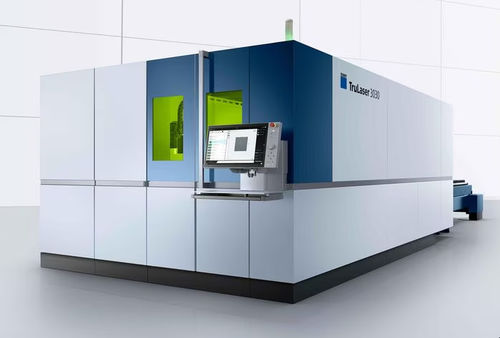

2D laser cutting machine TruLaser 3030 fiber

for aluminumfor stainless steelfor steel

Overview
The multipurpose 2D fiber laser cutting machine family designed for flexibility and productivity. TruLaser 3030 fiber, TruLaser 3040 fiber, TruLaser 3060 fiber and TruLaser 3080 fiber support TruFiber solid-state lasers and BrightLine fiber for high edge quality and efficient part removal. Numerous process functions and assistance systems increase availability and reduce operator intervention.

Key benefits

• BrightLine fiber: superior cutting edges for easier part removal and less post-processing
• CoolLine: targeted cooling for intricate cutting in thick mild steel
• Drop&Cut: camera-guided placement to produce parts from remainder sheets
• Intuitive operation: large touch display with integrated cutting parameters
• Condition Guide: continuous condition monitoring to increase availability
• Smart Collision Prevention: reduces collision risk and minimises need for microjoints
• DetectLine: camera-based position recognition for precise reworking
• Highspeed / Highspeed Eco: nozzle design reduces nitrogen consumption and increases throughput
• TruFiber options up to 24 kW for high productivity in medium and thick sheets

Applications

• High-speed cutting in thin sheets
• Cutting of non-ferrous metals with TruFiber
• Processing of film-coated sheets
• Thick mild steel cutting with CoolLine and cutting packages
• Automation-compatible for loading/unloading, part sorting and storage integration

Other notable functions & assistance systems

• Nanojoints: minimal fixing in scrap skeleton for easier part removal
• Part Station: efficient sorting and mobile handling of detached parts
• Fiber Care: extended availability and service parts for TruFiber with service agreement
• Smart Rerun: autonomous continuation after slight collision or cutting flaw
• AdjustLine: easy adjustment to varying material quality
• Sorting Guide: camera-based assistance for removal and sorting
• MobileControl app: operate and monitor via tablet
• Dot Matrix Code: laser-applied 2D codes for identification
• EdgeLine Bevel: chamfers and rounded edges on the laser
• RotoLas: tube and profile processing on the 2D machine

Technical specifications

• General dimensions (by model): Length / Width / Height — TruLaser 3030 fiber: 9229 mm / 6145 mm / 2200 mm; TruLaser 3040 fiber: 11200 mm / 6373 mm / 2200 mm; TruLaser 3060 fiber: 15450 mm / 6878 mm / 2200 mm; TruLaser 3080 fiber: 19620 mm / 6968 mm / 2200 mm
• Weight (basic machine): 3030: 11700 kg; 3040: 14300 kg; 3060: 19800 kg; 3080: 21850 kg
• Maximum speed (simultaneous): 170 m/min (all models)
• Working range X / Y: 3030: 3000 mm / 1500 mm; 3040: 4000 mm / 2000 mm; 3060: 6000 mm / 2500 mm; 3080: 8000 mm / 2500 mm
• Maximum workpiece weight (examples): without heavy-duty pallet changer — 3030: 1100 kg; 3040: 2000 kg; 3060: 2900 kg; 3080: 4710 kg; with heavy-duty pallet changer — 3030: 1800 kg; 3040: 3300 kg; 3060: 4900 kg; 3080: 7850 kg
• TruFiber laser options & representative max thicknesses: TruFiber 4000 (4 kW): mild steel up to 22 mm (25 mm with package); stainless steel 20 mm (35 mm with package); aluminium 20 mm; copper/brass 8 mm. TruFiber 6000 (6 kW): mild steel up to 25 mm (32 mm with package); stainless up to 25 mm (35 mm with package); aluminium 25 mm; copper/brass 10 mm. TruFiber 9000 (9 kW): aluminium 30 mm; stainless up to 40 mm in some configs. TruFiber 12000 (12 kW) and TruFiber 24000 (24 kW) increase maximum thicknesses (examples up to 40–60 mm depending on package).
• Consumption / average power input (examples): TruFiber 4001 ≈ 10 kW; 6001 ≈ 11 kW; 9001 ≈ 14.5 kW; 12001 ≈ 16 kW; 24001 ≈ 27 kW
• Processes & options: BrightLine fiber, Highspeed / Highspeed Eco, CoolLine, FlexLine, EdgeLine Bevel, RotoLas, Smart Rerun, DetectLine, Sorting Guide, Drop&Cut, Nanojoints, PierceLine, integrated gas mixer, Touchpoint HMI, Cutting Assistant
• Notes: Exact technical limits depend on chosen laser, options and cutting packages; product range may vary by country.
