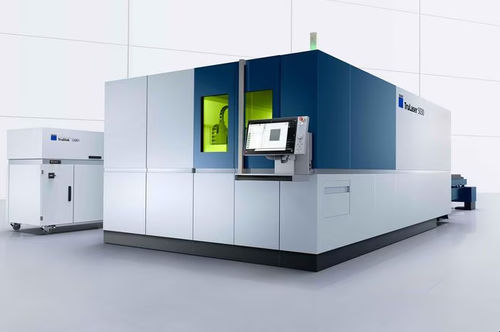

Fiber laser cutting and engraving machine TruLaser 5030 fiber

2D laserfor aluminumfor stainless steel

Overview
The TruLaser 5030 fiber, TruLaser 5040 fiber and TruLaser 5060 fiber are 2D fiber laser cutting machines designed for high feed rates, repeatable part quality and scalable automation. Available with TruFiber laser sources from 6 kW up to 24 kW, the series supports fast cutting of a wide range of metals and reduces operator involvement through integrated assistance and automation functions.

Key benefits

• Lower part cost through high machine dynamics and fast axis movements for efficient processing of complex contours.
• High available laser power (up to 24 kW) and Active Speed Control for consistent cutting and reduced rejects.
• BrightLine fiber optics and optimized nozzles for improved cut-edge quality and reliable part removal.
• Highspeed / Highspeed Eco modes to increase throughput and reduce nitrogen consumption (Highspeed Eco up to ~70% N2 savings).
• Smart Nozzle Automation and LensLine to maintain nozzle and lens condition with minimal intervention.
• Touchpoint HMI for intuitive operation and faster setup.
• Large-format capability and CoolLine for fine contours in thick mild steel.

Applications & materials
Suitable for cutting thin to thick sheets in structural steel, stainless steel, aluminium, copper and brass. Processes such as BrightLine fiber, FlexLine, CoolLine, Nanojoints/Microjoints and Highspeed variants enable optimisation by material, thickness and required edge quality.

Assistants & automation

• Part Station and Part Separator for efficient sorting and handling.
• Sorting Guide (camera assistance), Smart Rerun for autonomous restart after minor collisions, and MobileControl for remote operation.
• LoadMaster, LiftMaster and storage integrations for semi- to fully automatic loading/unloading and automated production cells.

Process reliability & quality functions

• Active Speed Control: monitors kerf and adjusts feed to maintain stable cutting despite material variations.
• DetectLine: camera-based sheet positioning and focal setting.
• Cutting Assistant: parameter optimisation with AI-assisted recommendations.
• PierceLine: monitored piercing to shorten cycle times and improve quality.
• Smart Nozzle Automation & LensLine: automatic detection and correction to extend component life and availability.

Technical specifications (excerpt)

• Models: TruLaser 5030 fiber, TruLaser 5040 fiber, TruLaser 5060 fiber.
• Laser sources: TruFiber 6001 / 9001 / 12001 / 24001 (6 kW–24 kW).
• Max simultaneous speed: 280 m/min.
• Working range examples: 5030 — X 3000 mm × Y 1500 mm; 5040 — X 4000 mm × Y 2000 mm; 5060 variants support larger X ranges.
• Dimensions (L × W × H) examples: 5030 — 9229 × 6145 × 2200 mm; 5040 — 11200 × 6373 × 2200 mm.
• Machine weight (basic): ~11,700 kg (5030) / ~14,300 kg (5040).
• Max workpiece weight (without heavy-duty pallet changer): 5030 — 1,100 kg; 5040 — 2,000 kg. With heavy-duty pallet changer higher values apply.
• Example max sheet thicknesses by TruFiber: 6001 ~ up to 25 mm (mild steel); 9001 ~ up to 30–40 mm; 12001/24001 extend to 30–60 mm depending on packages and material.
• Typical production power consumption (approx.): 6001 — 11 kW; 9001 — 14.5 kW; 12001 — 16 kW; 24001 — 27 kW.
