Fiber laser cutting and engraving machine TruLaser Center 7030

2D laserfor aluminumfor stainless steel

Overview

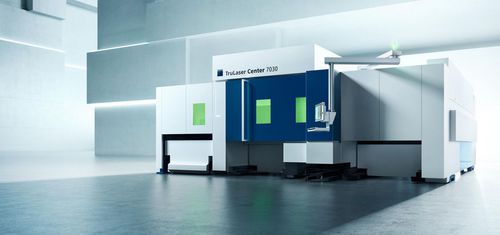

The TruLaser Center 7030 is a compact, fully automated 2D laser cutting system that integrates programming, cutting, automated removal, sorting and depositing in a single production cell. It is designed for continuous, unattended operation with modular unloading and storage options.

Key features

• Integrated process chain: programming (TruTops Boost), laser cutting, part removal, sorting and depositing.
• Vision Equipment & Smart View for live interior monitoring and process transparency.
• SmartGate: synchronized part support to prevent tilting and unwanted fusing during cutting.
• SortMaster Speed and SortMaster Box Linear for high-speed removal and stacking of large and delicate parts.
• SmartLift and suction-plate handling to secure and extract small or filigree parts reliably.
• LoadMaster Center for automatic sheet loading with peeling technology and optional connection to storage systems.
• Automatic nozzle changer and additional axes for parallel setup and high-dynamic contour cutting.

Components and equipment

• SmartGate — mobile part support synchronized with the cutting head; ejector cylinder finds optimal push-out points per geometry.
• SortMaster Speed — high-speed removal and stacking unit with suction plate for large and delicate parts; enables part removal parallel to production.
• SmartLift — pins that press parts from below during synchronous lift extraction together with the suction plate.
• SortMaster Box / SortMaster Box Linear — sorting units for parallel distribution of small parts into containers.
• LoadMaster Center — automatic loading system placing unprocessed sheets on the brush table with high-performance peeling technology.
• Automatic nozzle changer — program-controlled nozzle exchange in the cabinet for parallel setup.
• TruTops Boost — programming software automating nesting and process proposals for cutting, removal and sorting.
• Vision Equipment & Smart View — cameras and lighting providing live streams for constant visibility.
• TouchPoint user interface — intuitive operator dialogue and cell status information.

Technical data
Installation surface:
Length: 10135 mm
Width (cart extended): 10720 mm
Width (cart retracted): 6420 mm
Height: 3050 mm

Weight with all units: 38860 kg

Nominal working range:
X axis: 3000 mm
Y axis: 1500 mm
Z axis: 120 mm

Laser-specific data TruFiber 6001:
Maximum laser power: 6000 W
Maximum sheet thickness, mild steel: 12.7 mm
Maximum sheet thickness, stainless steel: 12.7 mm
Maximum sheet thickness, aluminium: 6 mm
Maximum sheet thickness, brass: 6 mm
Maximum sheet thickness, copper: 6 mm

Laser-specific data TruFiber 12001:
Maximum laser power: 12000 W
Maximum sheet thickness, mild steel: 12.7 mm
Maximum sheet thickness, stainless steel: 12.7 mm
Maximum sheet thickness, aluminium: 6 mm
Maximum sheet thickness, brass: 6 mm
Maximum sheet thickness, copper: 6 mm

Unloading automation – SmartGate:
Maximum part size: 160 mm x 160 mm
Minimum part size: 30 mm x 30 mm

SortMaster Speed unloading automation:
Maximum part size: 2000 mm x 1500 mm
Minimum part size: 90 mm x 60 mm

Applications & benefits

• High-speed cutting of thin and medium-thickness sheets with minimal manual intervention.
• Reliable processing of non-ferrous metals using TruFiber laser options to manage back-reflection.
• Automated part removal and sorting reduce cycle interruptions and manual rework.
• Handling systems enable reliable processing of very small and filigree parts.

Characteristics / technical specifications

• Product name: TruLaser Center 7030
• Brand: TRUMPF
• Installation footprint: L 10135 mm × W 6420–10720 mm × H 3050 mm
• Weight (with all units): 38860 kg
• Working range X × Y × Z: 3000 mm × 1500 mm × 120 mm
• Laser options: TruFiber 6001 (up to 6000 W) and TruFiber 12001 (up to 12000 W)
• Max sheet thickness (mild & stainless steel): 12.7 mm; (aluminium, brass, copper): 6 mm
• SmartGate part size (max / min): 160 × 160 mm / 30 × 30 mm
• SortMaster Speed part size (max / min): 2000 × 1500 mm / 90 × 60 mm
• Main automated modules: SmartGate, SmartLift, SortMaster Speed, SortMaster Box Linear, LoadMaster Center, automatic nozzle changer, Vision Equipment
• Software: TruTops Boost (automated programming & nesting), Smart View (monitoring)
