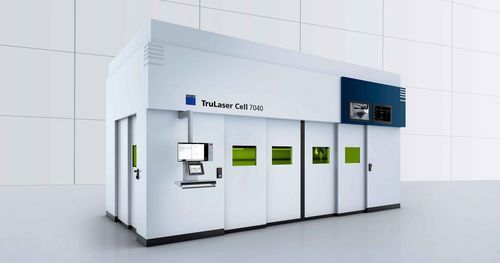

Fiber laser cutting machine TruLaser Cell 7040

2D laser3D laserfor metal

Overview
The TruLaser Cell 7040 is a modular 3D laser cutting, welding and laser metal deposition system for two‑ and three‑dimensional components and tubes. Its modular design and retrofit options allow configuration for varying production layouts and evolving process requirements.

Key benefits

• High productivity: top machine dynamics, FastLine Cell (piercing on‑the‑fly) and dynamic cutting optics to reduce cycle times.
• Operator convenience: movable control panel, MobileControl app and optional 6D mouse for ergonomic operation and fast teaching.
• Process reliability: X‑Blast technology for robust cutting and extended nozzle service life.
• Component quality: technology tables, guaranteed raw beam adjustment and BrightLine Weld for improved cutting and weld results.
• Industry 4.0 readiness: modern control concept and OPC/UA interface for automation integration.
• Modular entry and retrofit capability for tailored configurations.

Cost-effective production
Piercing on‑the‑fly, two‑station operation and rotary table options enable parallel loading/unloading and higher throughput. A fast front door in glass‑fibre composite and movable tables reduce non‑productive times.

Compact footprint
Selectable working areas and integrated electrical cabinets result in a compact installation space, with the TruLaser Cell 7040 fiber setting the benchmark for compactness in its class.

Simple and ergonomic operation
The ergonomic control panel can be rotated and moved along the machine front. Automatic optics detection allows quick, error‑free tool changes and simplifies changeovers.

Process flexibility
The 2‑in‑1 fiber enables cutting, welding and laser metal deposition with a single laser cable; changing the processing optics switches the process while the control adapts automatically.

Applications

• High‑quality cutting of galvanized steel for automotive prototypes and pre‑series.
• Laser cutting of complex 2D/3D components (outer contours, holes).
• Laser welding of three‑dimensional parts (e.g. fan wheels) with reduced rework.
• Laser metal deposition (LMD) for repair welding and coating of components.
• Tailor welded blanks processing with automation, VisionLine and multifocus optics for precision and weld quality.

Technical specifications

• Model variant: TruLaser Cell 7040 fiber
• Axis travel X: 4000 mm
• Axis travel Y: 1500 mm or 2000 mm
• Axis travel Z: 750 mm or 1000 mm
• Axis travel B: ±135°
• Axis travel C: n × 360°
• Dynamic cutting optics travel: ±9 mm
• Max axis speed X/Y/Z (axially parallel): 100 m/min
• Max simultaneous axis speed: 173 m/min
• Max B/C axis speed: 90 1/min
• Max axis accelerations: X 9 m/s²; Y/Z 10 m/s²; dynamic optics 40 m/s²; B 200 rad/s²; C 100 rad/s²
• Positioning accuracy (linear axes X,Y,Z): 0.08 mm
• Positioning accuracy (rotary axis B): 0.015°
• Max laser power: 3000–6000 W
• Available lasers: TruDisk, TruFiber
