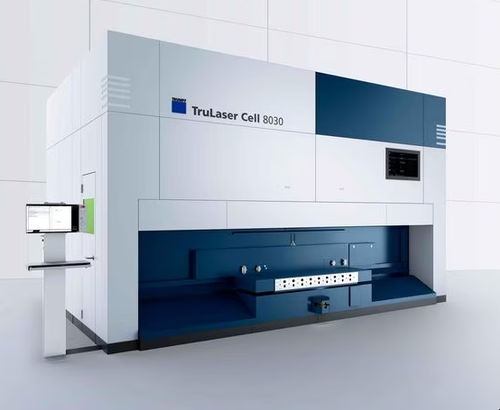

Fiber laser cutting machine TruLaser Cell 8030

3D laserfor metalsheet metal

Overview
The TruLaser Cell 8030 is a high-end 3D laser cutting machine designed for hot-formed components. Available in standard and large variants, it can be configured for cutting door rings and complete side sections or for producing single parts and segments. Optimised design details and new developments improve production reliability and throughput; options such as Smart Approach, Dynamic Level 3 and X-Blast increase process efficiency and profitability.

Key benefits

• Maximum productivity: increased acceleration and Dynamic Level 3 raise throughput versus the previous model.
• Minimal non-productive time: optimised rotary table with reduced rotation time (e.g. 1.8 s) shortens overall cycle time.
• Industrial robustness: design improvements based on a large installed base of 3D hot-forming machines.
• Versatile functions: X-Blast Nozzle, ObserveLine (Comfort & Professional), BrightLine Speed and Smart Approach enhance process stability and quality.

Compact footprint
The machine offers a compact, ergonomic layout. The rotary table is accessible from the front and sides and the overall layout can be adapted to hall and production requirements for efficient material flow.

X-Blast Nozzle Technology
The X-Blast nozzle provides up to twice the effective bandwidth compared with standard nozzles, increasing working distance, reducing nozzle collisions and improving process stability and component quality.

Dynamic Level 3
Dynamic Level 3 increases acceleration for faster approach and traverse motions. For complex components, cycle times can be reduced by up to about 7% depending on the application.

Software
TruTops Cell supports convenient 3D process programming (cutting, welding, metal deposition). It imports and corrects 3D CAD data, generates automatic cutting proposals in three dimensions and suggests suitable fixtures and devices.

Multimedia and demo content (captions)

• TruLaser Cell 8030 – tried, tested and now improved even further.
• Time comparison of rotational and cutting speed in TruLaser Cell 8030.
• TruLaser Cell 8030 performance comparison.
• TruLaser Cell 8030 - BrightLine Speed.
• TruLaser Cell 8030 ObserveLine Professional.

Technical specifications

• Model variants: standard version / large version
• Maximum number of axes: 5 / 5
• X axis travel range: 3000 mm / 3000 mm
• Y axis travel range: 1300 mm / 2100 mm
• Z axis travel range: 600 mm / 650 mm
• B axis travel range: ±135° / ±135°
• C axis travel range: n × 360° / n × 360°
• Dynamic cutting optics travel range: ±9 mm / ±9 mm
• Maximum workpiece size X: 2540 mm / 2540 mm
• Maximum workpiece size Y: 840 mm / 1640 mm
• Maximum workpiece size Z: 370 mm / 420 mm
• Maximum axis speed (X, Y, Z): 100 m/min / 100 m/min
• Maximum simultaneous axis speed: 173 m/min / 173 m/min
• Maximum axis acceleration (X, Y, Z): 11 m/s² (standard) / 10 m/s² (large)
• Maximum simultaneous axis acceleration: 19.1 m/s² / 17.3 m/s²
• Maximum laser power: 3000 W – 4000 W
• Available lasers: TruFiber
• Maximum load per side (rotary table automation): 300 kg / 750 kg
• Work stations: 2 / 2
• Typical total non-productive time: 3.7 s / 4.9 s
• Typical rotation time: 1.8 s / 3.0 s
• Rotary plate diameter: 4000 mm / 5000 mm
• Working height: 700 mm
