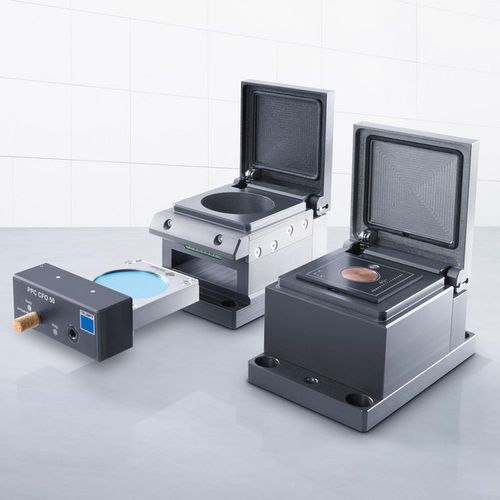

Power calibration system

displacementprogrammabledocumenting

Overview
The CalibrationLine from TRUMPF checks whether the focal position and laser power on the workpiece match configured requirements at regular, individually definable intervals. If necessary, CalibrationLine corrects focus in X, Y and Z and adjusts laser power via the TruControl control software, aligning program and reality. Measurement data are stored in a FIFO database and can be accessed or exported; selected values are available via Quality Data Storage.

Key benefits

• Always the right focus: calibrates focal position and compensates long-term and temperature drift.
• Correct laser power: ensures consistent welding results after fiber or optics changes by checking and correcting power on the workpiece.
• Complete transparency: traceability through stored, detailed measurement data and export capability.

Product variants

• CalibrationLine Focus: Regular checks at customizable intervals to ensure focal position on the workpiece matches requirements; automatically adapts and calibrates the focal point. With 2D PFO, communication with an external axis via fieldbus enables Z-axis focus determination.
• CalibrationLine Power: Regular checks at individually definable intervals to verify laser power on the workpiece; corrects power via TruControl when necessary to maintain consistent, high-quality welding results.

Applications

• Remote laser welding of bodywork components: enables exact calibration of the complete system during welding.
• Battery cell cleaning/paint removal: supports indirect quality control by measuring average power and focus position with the TruMicro 7000.

Compatibility matrix — CalibrationLine Power
PFO 2D | PFO 3D | BEO D35 | BEO D50 | BEO D70-2
TruDisk: ✓ | ✓ | ✓ | ✓ | ✓
TruPulse: - | - | - | - | -
TruFiber: ✓ | ✓ | ✓ | ✓ | ✓
TruDiode: ✓ | ✓ | ✓ | ✓ | ✓
TruMicro 7000: ✓ | - | - | - | -
TruLaser Cell 3000: ✓ | - | ✓ | ✓ | ✓
TruLaser Station 5005: ✓ | - | ✓ | ✓ | ✓

Compatibility matrix — CalibrationLine Focus (alternative selection)
PFO 2D | PFO 3D | BEO D35 | BEO D50 | BEO D70-2
TruDisk: ✓ | ✓ | - | - | -
TruPulse: ✓ | ✓ | - | - | -
TruFiber: ✓ | ✓ | - | - | -
TruDiode: ✓ | ✓ | - | - | -
TruMicro 7000: ✓ | - | - | - | -
TruLaser Cell 3000: ✓ | - | - | - | -
TruLaser Station 5005: ✓ | - | - | - | -

Technical characteristics / specifications

• Type: Sensor system — CalibrationLine.
• Functions: Calibrates focal position (X, Y, Z) and laser power; corrects focus and power via TruControl; measurement data stored in FIFO database; exportable; selected data available via Quality Data Storage.
• Variants: CalibrationLine Focus, CalibrationLine Power.
• Benefits: High repetition accuracy; compensation of long-term and temperature drift; consistent welding quality after component/optics changes; traceability via stored measurement values.
• Typical applications: Remote laser welding (bodywork components), battery cell cleaning/paint removal (monitoring average power and focus position with TruMicro 7000).
• Compatibility: See compatibility matrices above for supported laser and optics combinations.
