aerosol monitoring device / dust concentration and opacity / dust emission / for safety
AM520i

{{requestButtons}}

Characteristics

  • Type:

    dust concentration and opacity

  • Applications:

    measurement, alarm, dust, dust emission, VOC, for safety, aerosol

  • Other characteristics:

    continuous, digital, measuring device, real-time, ATEX, compact, robust, explosion-proof

Description

TSI's newest personal aerosol monitor provides real-time aerosol mass concentration readings for PM10, respirable, China respirable, PM2.5, PM1 and 0.8 DPM. The SidePak AM 520i is IECEx and ATEX certified for use in explosive environments.

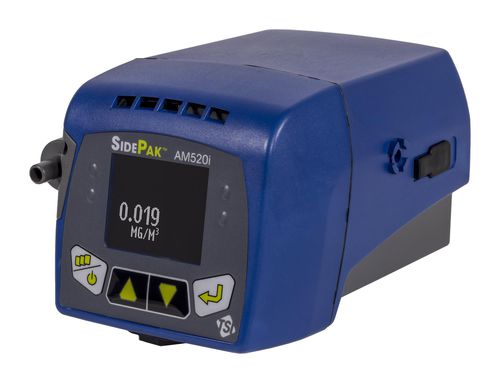

The SidePak™ Personal Aerosol Monitor AM520i is a small, single-channel, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM10, PM4 (Respirable), PM5 (China Respirable), PM2.5 , PM1 and 0.8 μm Diesel Particulate Matter (DPM).
The AM 520i is IECEx and ATEX certified, meaning it can help you achieve continuous compliance in a variety of volatile environments.

Industry Applications
•Aerospace
•Bulk Material Handling
•Chemical Manufacturing and Processing
•Confined Spaces
•Mining
•Oil and Gas
•Petrochemical
•Pharmaceutical
KITS INCLUDE
Soft single-unit carrying case
100-240 VAC power supply
USB cable
Impactor kit
Dorr-Oliver Cyclone kit
DPM cyclone kit
Screwdriver
Micro USB cable
Zero filter
Sample tube
Calibration certificate
User guide
Quick reference card
2-year warranty
