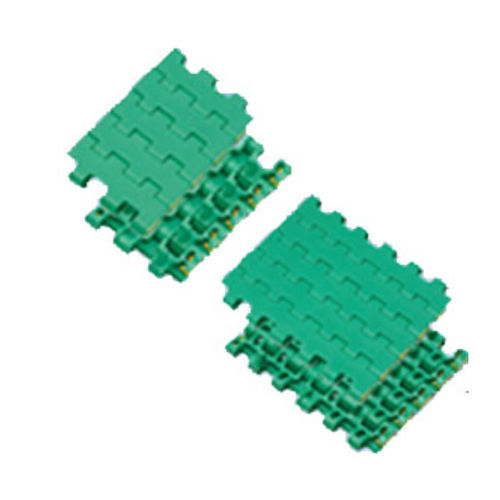

Plate conveyor belt WT1515G-M

flexiblemodularplastic

The WT1510 series is ideal for replacing belt conveyors as it can accommodate chain widths of 50mm and 100mm, the same as belt conveyors. With a small pitch, it is suitable for transporting small items. Features ・Chain width Added 100mm Now easier to replace from belt conveyors as chains are available in 50mm and 100mm widths same as belt conveyor. ・With tab guide attachment Ideal for single filers with left-right speed differences. ・No dead plate (Right-angle layout ) Nose bars can be used. (In-line layout is also possible. ) Combined with a conveyor using nose bar and WT1505GTO-M type, right-angle layout with no remaining of conveyance materials is available. Compared to when using curved belts, it reduces space requirement and number of motors, and not require transfer adjustment (height difference) in front of and behind curved conveyor.
