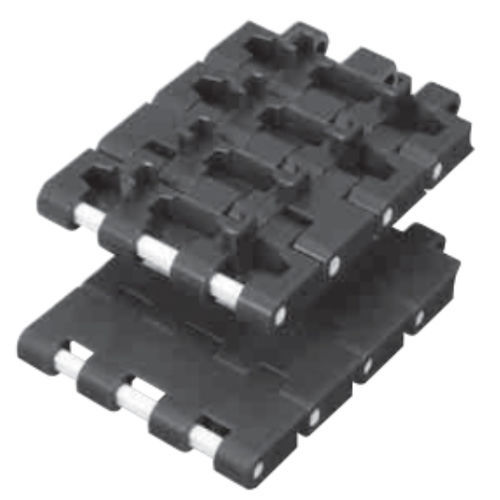

Plastic modular chain BT8 Series
Lineup of closed type suitable for horizontal conveyors and magnet type suitable for inclined conveyors.
Ideal for conveying trays using multiple chain strands running side-by-side.
Features
Ideal for conveying trays using multiple chain strands running side-by-side.
Magnet type (BTM8H-M) with magnets embedded in links enables incline conveyance of metallic trays.
As magnet installing positions need to be discussed with us, so it is made-to-order product.
・Magnet Configuration (BTM8H-M)
Magnets can be inserted into magnet type (BTM8H-M) either on the right side, left side, or both sides with respect to the traveling direction, at any interval.
Refer to the diagram on the right for installation positioning.
