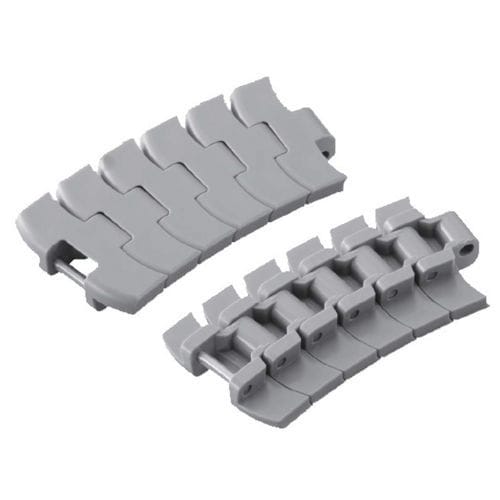

Plastic conveyor chain TTUPS-H

slattedfor the beverage industryfor the food industry

The top plate is 9.8mm thick, which is less likely to chip than conventional Plastic top chain. The joint pin is a D-pin type, which eliminates cracks caused by fitting with the pin in the pin hole. The pin can be cut and connect or connected from either the left or right side during maintenance. Features The top plate is 9.8mm thick, which is less likely to chip than conventional Plastic top chain. - The joint pin is a D-pin type, which eliminates cracks caused by fitting with the pin in the pin hole, and the pin can be cut and connect from either the left or right side during maintenance. - The same sprocket as the straight type BTC8H-M/BTM8H-M can be used. ■Application Below are the industries we recommend: It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc. Purpose ■Conveying containers such as food, cans, and beverages
