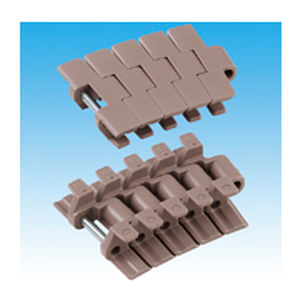

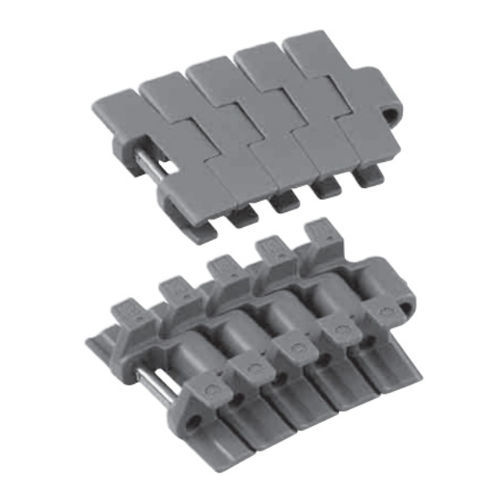

Plastic conveyor chain TPUM

slatted

Sideflexing running chain of TPM type, with a chain pitch of approximately half that of a conventional plastic top chain. Effective in reducing the noise level of conveyor and saving the space in transfer section. Only TPS-type sprocket (odd-numbered teeth) can be used, and part can be standardized. Features ・Sideflexing running chain of TPM type. Adopts chain pitch of approx. half of conventional plastic top chain. Effective in reducing the noise level of conveyor and saving the space in transfer section. ・Only TPS-type sprocket (odd-numbered teeth) can be used, and part can be standardized. ・Chain for sideflexing with float-preventive attachments (tabs) Prevents the chain from floating on corner section and ascending/descending conveyors, and scratches on top surface of plate on return side. Note) Chain pitch ：Pitch of 19.265 mm is designed that all teeth of TPS type sprocket (TTUP1012T: actual number of teeth is 21) engages with links. ■Application The following are the industries we recommend. May not be used depending on conveying capacity (conveyor speed), material to be conveyed (weight, shape), environment and application. Use as a guide when selecting
