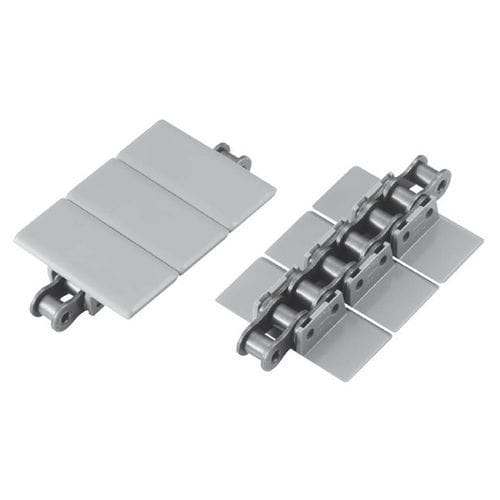

Steel conveyor chain TN series

slattedstandardlarge

Steel chain-based straight running chain with high allowable tension Only the top plate can be replaced. Features - Its large allowable tension makes it suitable for conveyors with large transport capacities (excluding SS and PC). -It is also possible to replace only the top plate. - Chain specifications are available to suit corrosive environments. -RS60 sprocket (12 teeth) can be used. Applications Below are the industries we recommend: It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc. Purpose ■Layouts with long transport distances and transport of heavy objects Main body chain specifications ・ Standard Series: The main chain is made of steel, and its main dimensions are the same as those of a regular roller chain, but the shape of the pin ends is different. Please note that the strength is weaker than RS roller chain for drives. ・ NP Series (Ni plating): The main chain is Standard Series and nickel plated. The Ni plating gives it a beautiful appearance and makes it rust-resistant. ・LMC NP Series (Lambda): NP Series main chain uses special oil-impregnated bush that use NSF H1 compliant oil, allowing it to be used Lube-free (lambda) and for a long life. ・ SS Series:
