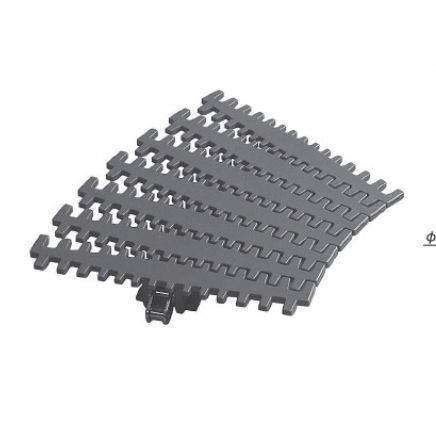

Plastic conveyor chain TP series

slattedfor heavy loads

A type in which a top plate is snapped onto a curved roller chain It is also possible to replace just the top plate. Features - A curved conveyor chain with a large allowable tension. The TP-PTS type has a wider top plate than the TP-PT type, making it effective for conveying large items. - A comb-tooth plate is used to reduce the gap between the front and rear links. - A type in which the top plate is snapped onto the curved roller chain, and it is also possible to replace just the top plate. - Comes with float-preventive tabs to prevent the chain from floating up. -RS60 sprocket (20 teeth) can be used. Note: Depending on the type and shape of the sprocket, interference with the hub may occur. Please machine the hub diameter to be equal to or smaller than the pitch circle diameter - 38.1 mm. ■Applications Below are the industries we recommend: It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc. Purpose= ■Layouts with long transport distances and transport of heavy objects
