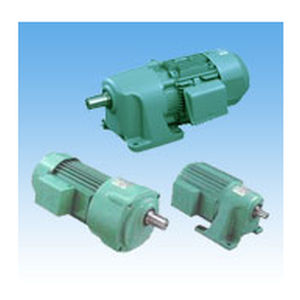

Three-phase gear-motor TA/TR

single-phasehelicalparallel-shaft

Parallel-axis type helical gear reducers Features ・Low Noise & Long Life With our proven experience in low-noise design and manufacturing technologies, we have achieved low-noise, long-life gear motors. ・Compact, light weight An aluminum-frame motor results in smaller, lighter gear motors. ・Environmentally friendly The use of electrostatic powder coating has improved the coating quality and, since it uses no thinner, has reduced VOC emissions (for three-phase models below 0.75 kW and 1/75) By switching from using wood and bolts in packaging to using cardboard boxes and film wrapping instead, we have helped customers reduce the amount of waste they generate. (for products weighing less than 30 kg ) ・Usability The grease is already encapsulated so it’s ready to use. It can be installed in any direction. Tap processing is standard on the output shaft edges. Face mounting is also available as standard, which allows easy securing of bolts by pushing them from the output shaft side through screw holes located on a mounting surface of the gear case. ・With inverter motor (0.1kW to 0.4kW only) The inverter-compatible motor can be directly connected, and the dimensions are exactly the same as those of thestandard model. Even in the low frequency range (6 Hz and more), continuous operation at 100% constant torque is possible. Equipped with a High Efficiency motor of 0.75kW or more has the same characteristics as those with inverter motor. ・Range of options Tsubaki offers a wide range of unique options to accommodate many industries, including environment compliant, food, and bakery. ・Compatible with Overseas High Efficiency Regulations (TR series)
