LCD/TFT replacement monitor LCD12-0313
15"800 x 600240 x 160

LCD/TFT replacement monitor
LCD/TFT replacement monitor
Add to favorites
Compare this product


Display size
800 x 600, 240 x 160
industrial, for Hurco control
Other characteristics

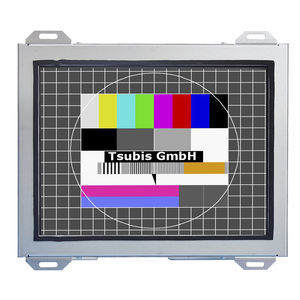

12,1" TFT Industrial Monitor for Hurco Ultimax 3 12,1" TFT industrial monitor as replacement for LCD monitor. Monitor: 12,1" monitor Control unit: Hurco Ultimax 3, WinMax This 12.1 "TFT installation monitor is designed to replace the 12.1" TFT monitor of the Hurco Utlimax 4 and WinMax controls. Due to the plug and play principle, electrically and mechanically 1: 1 compatible, the conversion is quick and easy with a few simple steps.. Technical specifications: Display Resolution 12,1“ TFT Full Colour active / 800 x 600 Pixel Brightness 300 cd/m2 Frequency 15-45 kHz horizontal, 50-75 Hz vertikal Settings über OSD (On Screen Display) Active area 249 x 188 mm (B x H x T) Dimensions 290 x 232 x 82 mm (BxHxT) Control Ultimax 3 und WinMax von Hurco Inputs 15 pol. HD-Sub Buchse Power supply AC 240 V (10 pol. Wannenstecker) Temperature -10°C bis 55°C Betriebstemperatur Standards CE Industrienorm, EN55022, EN55024
