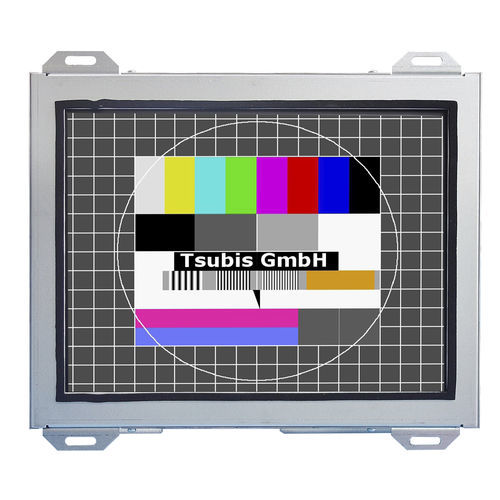

LCD/TFT replacement monitor LCD12-0161

15"800 x 600panel-mount

This 12.1 "TFT installation monitor is designed to replace the 12.1" TFT monitor of the Hurco Utlimax 4, WinMax VMX and 24 controls. Due to the plug and play principle, electrically and mechanically 1: 1 compatible, the conversion is quick and easy with a few simple steps..Display Resolution12,1“ TFT Full Colour active / 800 x 600 PixelBrightness300 cd/m2Frequency15-45 kHz horizontal, 50-75 Hz vertikalSettingsüber OSD (On Screen Display)Active area249 x 188 mm (B x H x T)Dimensions290 x 232 x 82 mm (BxHxT)ControlUltimax 4 und WinMax von HurcoInputs15 pol. HD-Sub BuchsePower supplyDC 12 V (10 pol. Wannenstecker)Temperature-10°C bis 55°C BetriebstemperaturStandardsCE Industrienorm, EN55022, EN55024
