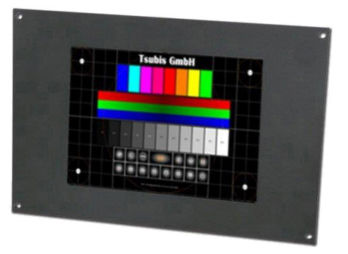

TFT replacement monitor LCD84-0011

8.4"800 x 600panel-mount

This 8.4 "TFT installation monitor and front panel solution was used as replacement for 9" screen TNC CRT monitor (monochrome, BE111 / BE110B / BE135) of HEIDENHAIN controls TNC 150, TNC131, TNC135 145. With the plug & play principle, electrically and mechanically compatible 1:1, the conversion is quick and easy with a few simple steps.DisplayResolution8,4“ TFT Full Colour active / 800 x 600 PixelBrightness300 cd/m2Frequency15-45 kHz horizontal, 50-75 Hz vertikalSettingsvia OSD (On Screen Display)Active area174 x 131 mm (B x H)HousingCompatibleFront plate dimentions280 x 190 mm (BxH)ControlTNC 150, 131, 135, 145 of HEIDENHAINInput signal24pol. Centronics ConnectorInput VoltageDC 12 V via Video cableOperating temperature-10°C bis 55°C Manufactured according toCE Industrienorm, EN55022, EN55024
