Vertical CNC machining center V series
3-axisBT 30BBT30

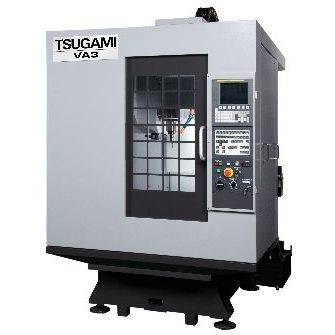

Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30 - image - 2
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30 - image - 3
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30 - image - 4
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30 - image - 5
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30 - image - 6
Vertical CNC machining center - V series - Tsugami - 3-axis / BT 30 / BBT30 - image - 7
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 30, BBT30
Number of tool stations
20 tools
Other characteristics
high-speed
X travel

500 mm, 700 mm
(19.69 in, 27.56 in)

Y travel

400 mm, 450 mm
(15.75 in, 17.72 in)

Z travel

350 mm
(13.78 in)

Rotational speed

8,000 rpm, 10,000 rpm, 15,000 rpm, 20,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)

Power

3.7 kW, 9 kW, 13 kW
(5.03 hp, 12.24 hp, 17.68 hp)

Work feed X-axis

48 m/min

Work feed Y-axis

48 m/min

Work feed Z-axis

48 m/min

Table load capacity

250 kg, 300 kg
(551 lb, 661 lb)

Weight

2,600 kg, 3,200 kg
(5,732.02 lb, 7,054.79 lb)

Overall length

2,105 mm, 2,205 mm
(82.9 in, 86.8 in)

Overall width

1,500 mm, 1,900 mm
(59.1 in, 74.8 in)

Overall height

2,373 mm, 2,385 mm
(93.4 in, 93.9 in)

Description

●The spindle is separated from the ATC arm and the tool magazine, so the tooling set without care of magazine interference is possible. ●The tool can be inserted directly into the spindle or removed from the spindle manually from the front of the machine.
