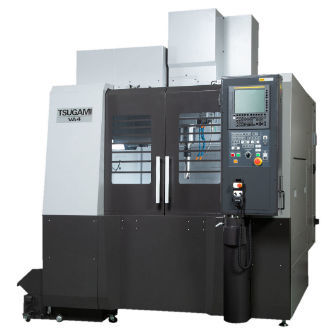

Vertical CNC machining center V series 3-axisBBT4020 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BBT40
- Number of tool stations
- 30 tools, 20 tools
- Applications
- for large workpieces
- Other characteristics
- high-speed
- X travel
850 mm, 1,000 mm
(33.46 in, 39.37 in)- Y travel
510 mm
(20.08 in)- Z travel
460 mm, 660 mm
(18.11 in, 25.98 in)- Rotational speed
8,000 rpm, 10,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1)- Power
11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)- Table load capacity
800 kg
(1,764 lb)- Weight
5,000 kg, 5,200 kg
(11,023.11 lb, 11,464.04 lb)- Overall length
2,655 mm, 2,837 mm
(104.5 in, 111.7 in)- Overall width
2,320 mm, 2,564 mm
(91.3 in, 100.9 in)- Overall height
2,652 mm, 2,852 mm
(104.4 in, 112.3 in)
Description
●The machine with wide door-open space and table accessibility helps operators workability.
●Increased tool storage capacity of 30 tools (1.5 times more than the previous model) enables the complex-shaped workpiece machining and process integration. (VA4-Ⅱ)
