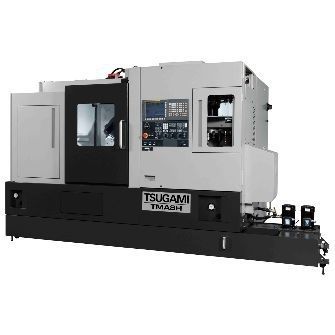

CNC turning center TMA8H series3-axismillingspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Other characteristics
- milling, spindle, high-precision, high-performance, Y-axis
- Diameter
65 mm, 220 mm
(2.56 in, 8.66 in)- Spindle speed
4,000 rpm, 5,000 rpm, 15,000 rpm, 20,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1, 94,247.78 rad.min-1, 125,663.706 rad.min-1)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
40,000 mm/min
(26 in/s)- Nominal power
5.5 kW, 11 kW, 15 kW
(7.5 hp, 15 hp, 20.4 hp)- Overall lenght
2,126 mm
(84 in)- Overall width
3,600 mm
(142 in)- Overall height
2,250 mm
(89 in)- Weight
8,500 kg
(18,739 lb)
Description
Complete machining performed by one-chucking
Corresponds to high accuracy machining by equipping linear scale
●Crossed at right angle slide construction assures high-accuracy complex machining and free-chip-flow.
●Achieves 6-face machining with back spindle.
●Ideal machine for wide variety products in small quantities of complex-shaped parts.
●By process integration, reduces the number of operators and machines, and shortens the lead time.
●The linear scale on the X-axis slide is provided as standard. It can satisfy the needs of high accuracy machining. (The linear scale on the Y-axis or on the Z-axis is optional.)
