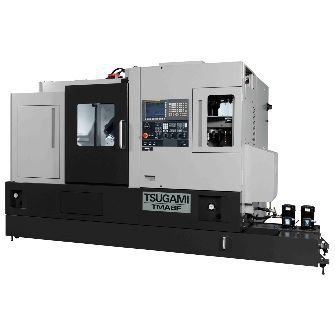

CNC turning center TMA8F5-axisspindlehigh-speed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 5-axis
- Other characteristics
- spindle, high-speed, precision
- Diameter
65 mm, 220 mm
(2.56 in, 8.66 in)- Spindle speed
4,000 rpm, 5,000 rpm, 15,000 rpm, 20,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1, 94,247.78 rad.min-1, 125,663.706 rad.min-1)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
40,000 mm/min
(26 in/s)- Nominal power
5.5 kW, 11 kW, 15 kW
(7.5 hp, 15 hp, 20.4 hp)- Overall lenght
2,126 mm
(84 in)- Overall width
3,600 mm
(142 in)- Overall height
2,250 mm
(89 in)- Weight
8,500 kg
(18,739 lb)
Description
●B-axis mechanism with direct drive makes high speed and accurate positioning.
●The linear scales on the X-axis, Y-axis and Z-axis slide are provided as standard.
It can satisfy the needs of high accuracy machining.
●Up to 60 tools can be stored in the tool magazine.
●Interference check function is provided as standard to improve operability.
■Allows machining with minimum tool protrusion.
■Machining under the recommended cutting conditions of the tools is possible.
■It is possible to machine complex-shaped workpieces that a tool cannot reach by 3- or 4-axis simultaneous controlled machine.
