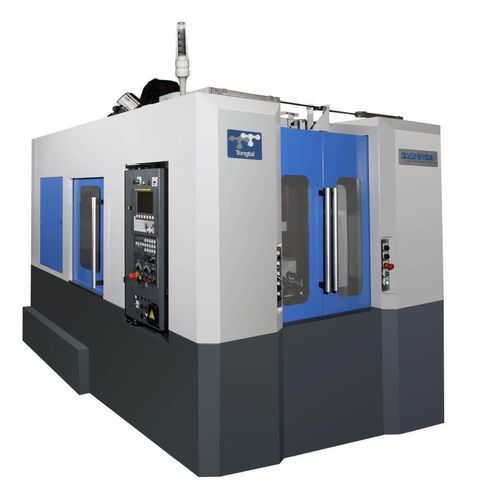

3-axis CNC machining center QVM-610AII
verticalcolumn typewith pallet changer

3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Other characteristics
with pallet changer
X travel

610 mm (24 in)

Y travel

410 mm (16 in)

Z travel

510 mm (20 in)

Rotational speed

8,000 rpm, 10,000 rpm (50,265 rad.min-1)

Power

5.5 kW, 7.5 kW, 9 kW (7.48 hp)

Description

Moving column design Equipped with automatic pallet changer system that can increase production efficiency 4 seconds only for pallet exchanging, reduce non-cutting time effectively Pallet’s 3 point jig fixture support mechanism (Patented) can enhance processing accuracy Maximum work table loading up to 400 kgx2 Table size(LxW) 700x410 mm Max. loading capacity 400x2 kg X/Y/Z axis travel 610/410/510 mm X/Y/Z axis rapid traverse 36/36/30 m/min Spindle taper 7/24 Taper No.40 Spindle speed 8000 (10000) rpm Spindle motor 7.5/5.5 (9/7.5) kW Tool capacity 24 (30) pc
