3-axis CNC machining center VC series
verticalcolumn typeHSK-63-A

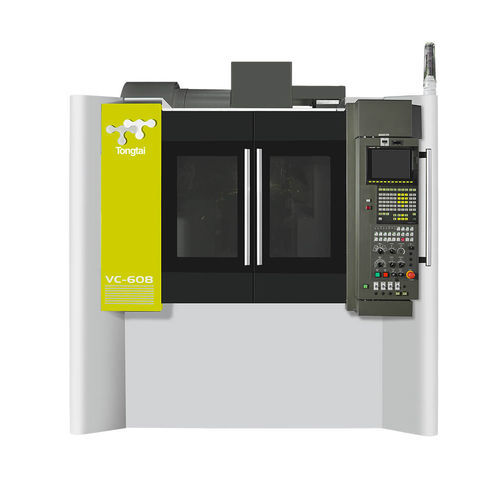

3-axis CNC machining center - VC series - TTGroup - vertical / column type / HSK-63-A
3-axis CNC machining center - VC series - TTGroup - vertical / column type / HSK-63-A
3-axis CNC machining center - VC series - TTGroup - vertical / column type / HSK-63-A - image - 2
3-axis CNC machining center - VC series - TTGroup - vertical / column type / HSK-63-A - image - 3
3-axis CNC machining center - VC series - TTGroup - vertical / column type / HSK-63-A - image - 4
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Spindle mount
BBT40, HSK-63-A
Number of tool stations
24 tools, 30 tools
Other characteristics
high-speed, direct-drive, high-precision, high-rigidity, with tool changer
X travel

850 mm, 1,050 mm, 1,100 mm
(33.46 in, 41.34 in, 43.31 in)

Y travel

610 mm, 710 mm
(24.02 in, 27.95 in)

Z travel

530 mm, 710 mm
(20.87 in, 27.95 in)

Rotational speed

Max.: 20,000 rpm
(125,664 rad.min-1)

Min.: 12,000 rpm
(75,398 rad.min-1)

Power

7.5 kW, 11 kW, 15 kW, 30 kW, 40 kW
(10.2 hp, 14.96 hp, 20.39 hp, 40.79 hp, 54.38 hp)

Work feed X-axis

24 m/min

Work feed Y-axis

24 m/min

Work feed Z-axis

24 m/min

Table load capacity

500 kg, 1,000 kg
(1,102 lb, 2,205 lb)
