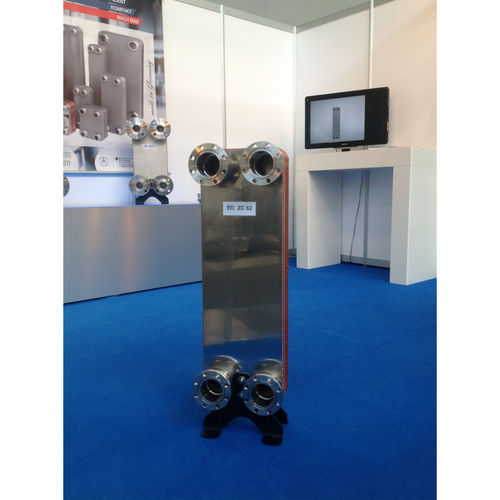

Plate heat exchanger ZC62

air/waterair/oilair/air

ZC62 series - copper brazed plate heat exchanger The ZC62, currently our largest series, is characterized by high thermal efficiency in a compact design. This series is available in plate designs L and H. This series is available in many configurations. Connection dimension / distance between the centers of the spigots: 161 mm x 690 mm (other dimensions available on request) External dimension: 271 mm x 800 mm Plate material: Stainless steel 1.4404 Plate thickness: 0.4 mm Solder material: Copper Connections: G and NPT external thread, G and FNPT internal thread, solder connections, flange Connection piece material: Stainless steel 1.4301 (1.4404 possible on request) Max. operating pressure: 30 bar Max. operating temperature: 200°C Applications: Refrigeration technology, heating technology, district heating
