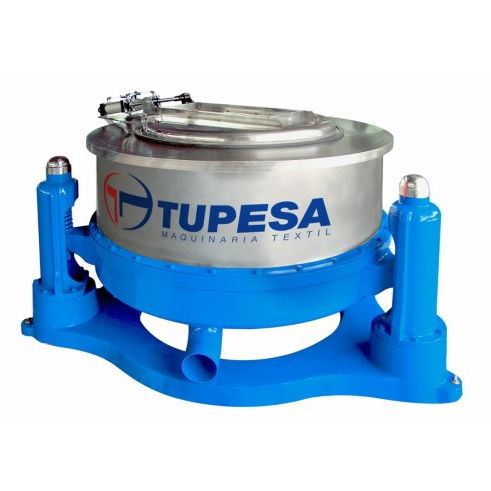

Hydro-extractor TH series

Robust construction machines with a carbon steel body and oversized basket. The casing and drain are built in stainless steel AISI-304. The finishing and protection of carbon steel parts are achieved through sand blasting, two layers of primer, and a layer of special paint resistant to humid and corrosive environments. Features include double hinged suspension and 3-column compression springs. - High performance with greater speed basket, achieving minimal humidity content. - Complete maneuver with frequency inverter and digital revolution counter. - Fully automatic operation with electro-pneumatic equipment. - Safety system for poorly distributed loads that automatically interrupts and stops the machine. - Power transmission by pulley directly coupled to the engine. These machines can be equipped with different loading devices: - Standard manual loading machines. - Machines with removable baskets with folding bottoms (optional). - Machines ready for work with net (optional). Characteristics (TH-30, TH-50, TH-70, TH-120, TH-150): - Capacity: 66 to 551 lb - Drum Diameter: 27.2 to 60 in. - Drum Depth: 14.9 to 20.8 in. - Centrifuge Speed: 1,000 to 650 rpm - Motor Power: 1.86 to 15 Kw - Weight: 584 to 9,700 lb Characteristics (TH-180): - Capacity: 771 lb - Drum Diameter: 72 in. - Drum Depth: 20.8 in. - Centrifuge Speed: 520 rpm - Motor Power: 22.3 Kw - Weight: 14,770 lb Dimensions (TH-30, TH-50, TH-70, TH-120, TH-150): - Height: 33.4 to 55.7 in. - Depth: 47.2 to 79 in. - Width: 55.1 to 105.7 in. Dimensions (TH-150, TH-180): - Height: 55.7 to 59.5 in. - Depth: 79 to 89.8 in. - Width: 105.7 to 126.4 in. Accessories: - Network - Network Ready Machine - Machine with detachable baskets (Pulley block not included) - Additional basket Technical Specifications: - Robust carbon steel construction with stainless steel AISI-304 components - Sandblasted, double primer, special paint for corrosion resistance - Double hinged suspension, 3-column compression springs - High performance, high speed basket for minimal humidity - Frequency inverter, digital revolution counter - Fully automatic electro-pneumatic operation - Safety system for load distribution - Pulley direct engine power transmission - Manual, removable, or net-ready loading options
