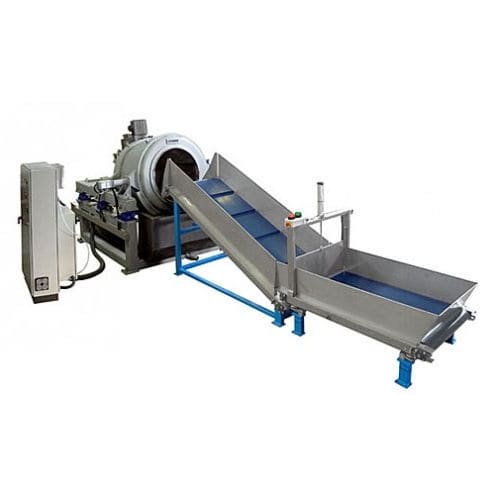

Fabric hydro-extractor EXTRACTOR series

TUPESA has maintained a strong and specialized presence in the garment sector for many years. Our company understands the needs of the industry and strives to provide the best and quickest solutions. Our collaboration with factories has revealed significant deficiencies in the centrifuging and drying processes of garments. This led us to design and build a new type of centrifuge, the HIDROEXTRACTOR-120. We developed a new water extraction system that offers great efficiency. This advanced technology ensures optimal benefits and significant energy savings. The machine is robust, relatively silent, and features intelligent monitoring control of all functions. It achieves minimal consumption through proper electronic and mechanical controls. The powerful centrifugation of the HIDROEXTRACTOR-120 with a G factor of 800 enables energy savings for drying up to 400 Kcal/kg of dry garments. Automatic garment load and unload. High-efficiency work cycles. Characteristics - Capacity: 120 Kg (EXTRACTOR-120), 160 Kg (EXTRACTOR-160) - Drum Diameter: 1,250 mm (EXTRACTOR-120), 1,400 mm (EXTRACTOR-160) - Drum Depth: 750 mm (EXTRACTOR-120), 850 mm (EXTRACTOR-160) - Drum Plate Thickness: 4 mm - Centrifuge Speed: 1,080 rpm - G Factor: 800 (EXTRACTOR-120), 850 (EXTRACTOR-160) - Motor Power: 36.4 Kw / 50 Hp (EXTRACTOR-120), 44.7 Kw / 60 Hp (EXTRACTOR-160) - Work Cycle Time: 3 min - Weight: 8,200 Kg (EXTRACTOR-120), 10,200 Kg (EXTRACTOR-160) Dimensions - Height (A): 2,400 mm - Depth (B): 3,500 mm - Depth with Belt (C): 6,990 mm - Width (F): 2,700 mm Technical Specifications - Product Code: EXTRACTOR - Availability: In Stock
