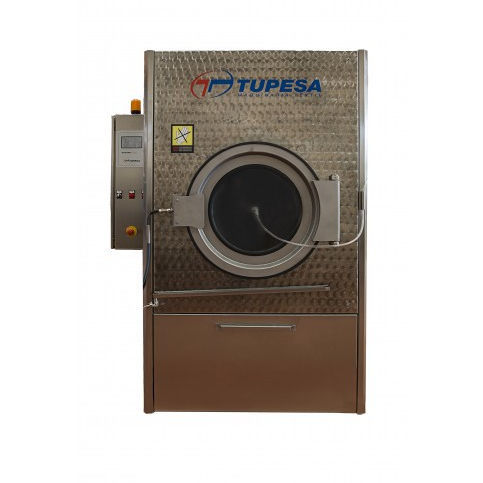

Superheated steam dryer SV-2 series

for the textile industrycompacthigh-performance

For TUPESA, it is always a priority to find the right solution for each of our customers. With this philosophy, the SV-2 I dryers equipped with steam injection and chemicals have been designed to process dry materials, vaporize them to moisten and open the fiber and add any additive in liquid basis. With this methodology, certain textile finishes are achieved in the garments processed without the need to carry out the intermediate wash and spin phase. Likewise, we have incorporated a great variety of accessories and services that will satisfy any need of any customer. They emphasize those focused on greater energy use and reduction of drying time. All our dryers are equipped with a frequency inverter, which allows us very efficient control of the machine, also in the dryers with loads over 80 kg / 176 Lb. Incorporating the tilting for the automatic discharge of the garments. - Modern and compact design. - High performance dryer. - Great door for easy loading. - Axial and radial air flow. - Recirculation of air and cooling. Characteristics: - Capacity: SV-2 34 I - 34 kg / 75 lb, SV-2 50 I - 50 kg / 110 lb, SV-2 80 I - 80 kg / 176 lb - Drum Diameter: SV-2 34 I - 950 mm / 37.32", SV-2 50 I - 1,190 mm / 46.85", SV-2 80 I - 1,500 mm / 59.06" - Drum Depth: SV-2 34 I - 936 mm / 36.85", SV-2 50 I - 877 mm / 34.53", SV-2 80 I - 1,068 mm / 42.05" - Drum Volume: SV-2 34 I - 660 lt / 175 gal, SV-2 50 I - 975 lt / 258 gal, SV-2 80 I - 1,890 lt / 500 gal - Motor Power: SV-2 34 I - 0.55 kW, SV-2 50 I - 1.1 kW, SV-2 80 I - 2.2 kW - Fan Power: SV-2 34 I - 1.5 kW, SV-2 50 I - 3 kW, SV-2 80 I - 5.5 kW - Steam Inlet: SV-2 34 I - 3/4", SV-2 50 I - 1", SV-2 80 I - 1" - Condensate Outlet: SV-2 34 I - 1/2", SV-2 50 I - 3/4", SV-2 80 I - 3/4" - Weight: SV-2 34 I - 670 kg / 1475 lb, SV-2 50 I - 960 kg / 2115 lb, SV-2 80 I - 1,950 kg / 4300 lb Dimensions: - Width (A): SV-2 34 I - 1,560 mm / 61.42", SV-2 50 I - 1,800 mm / 70.87", SV-2 80 I - 2,130 mm / 83.86" - Height (B): SV-2 34 I - 2,100 mm / 82.8", SV-2 50 I - 2,600 mm / 102.36", SV-2 80 I - 2,795 mm / 110.04" - Depth (C): SV-2 34 I - 1,585 mm / 62.36", SV-2 50 I - 1,600 mm / 62.99", SV-2 80 I - 2,090 mm / 82.32" - Tilting Depth (D): SV-2 80 I - 2,340 mm / 92.13" - Tilting Height (E): SV-2 80 I - 2,810 mm / 110.63" Technical Specifications: - Product Code: SV-2 - Availability: In Stock
