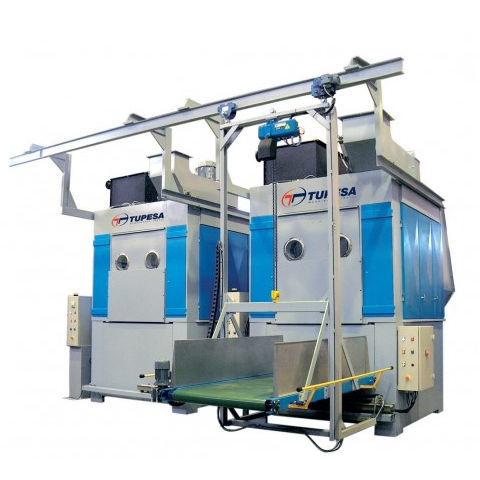

PVC conveyor belt CS

for the textile industry

Automatic loading distribution system with a maximum capacity of 300 kg. Features horizontal conveying through an upper rail and rising via a pulley block. Garments are loaded through an automatic PVC band conveyor, adjustable to SC model dryers. Front loading is facilitated by an automatic door opening, while automatic rear unloading is achieved through air impel. The system offers a conveying speed of 13 m/min, a rising speed of 4 m/min, and a band conveyor speed of 8 m/min. The conveyor box measures 2,200 x 1,140 mm and is available in different lengths for two or more dryers. Product Code: CS. Availability: In Stock.
