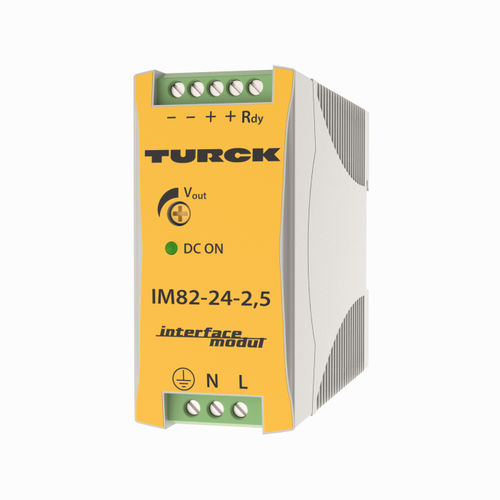

Tabletop power supply IM82-24-2.5AC/DCswitching
Add to favorites
Compare this product
Characteristics
- Mounting / format
- tabletop
- Type
- AC/DC
- Technology
- switching
- Input voltage
230 V
- Output voltage
24 V
- Current
2.5 A
- Power
8.8 W
- Output frequency
Max.: 63 Hz
Min.: 47 Hz
Description
Output voltage adjustable 24…28 VDC
Nominal current 2.5 A
Single/parallel operating mode
Surge protection
Universal operating voltage
Mains failure bridging up to 30 ms
High efficiency
Natural air cooling
Safety extra-low voltage SELV IEC/EN 60950
Country of origin - CN
Weight - 401 g
Technical Data
Power supply - 230 VUC
Nominal output voltage - 24 V
Nominal current - 2.5 A
Internal fuse - T 2 A / 250 VAC
Parallel mode - yes, via diodes
Power Good Output - yes
Electrical connection - Screw terminals
Dimensions - 90 x 40.5 x 114 mm
